(888) 312-8812 Login SignupGATES G40502-1010 SAE Male Inverted Swivel - 45 Bent Tube - Steel (C14)
Tap to view 1 more
$6099
Limited availability at this price!
5 Day Lead Time
Get it by Thursday, Jul 30
GATES G40502-1010 Part Description
Manufacturer
Product Description

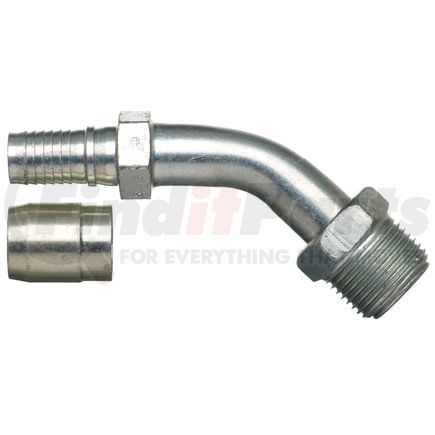

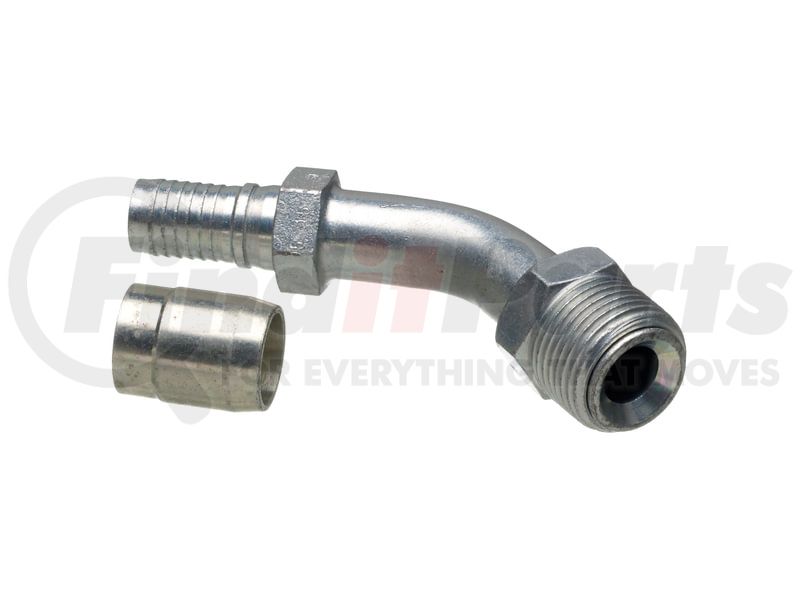

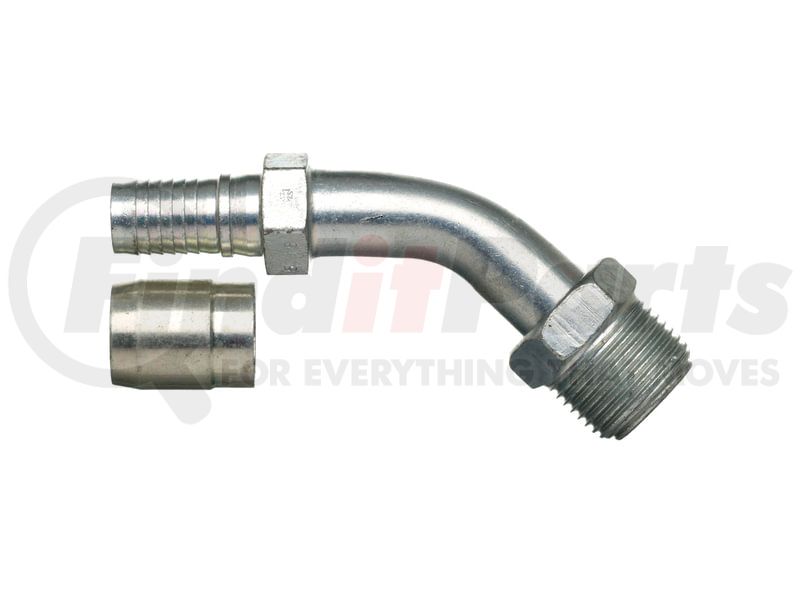

SAE Male Inverted Swivel - 45 Bent Tube - Steel (C14)
Features & Benefits
- Designed to perform with C14 hose
- Stainless steel, brass or carbon steel
- Recommended for air compressor discharge, hot oil and fluids, hot and greasy environments
- Compliant to SAE100 R14 specification
GATES G40502-1010 Specifications
Product Attributes
| Coupling Description | C14 SAE Male Inverted Swivel - 45 Bent Tube - Steel |
| Industrial Description | 10C14-10MIX45 |
| Thread Size | 7/8-18 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Gates C14 & C14CT |
| Stem Hex Size | .75 IN |
| Nut Hex Size | .875 IN |
| Drop Length | 1.34 IN |
| Cut-Off Length | 2.67 IN |
| Length | 3.37 IN |
| Inside Diameter | 12.7 MM |
| Drop Length | 34 MM |
| Cut-Off Length | 67.8 MM |
| Length | 85.6 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | N |
| UPC | 00072053176650 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G40502-1010 Cross References
| Brand | Part Number |
|---|---|
| N/A | 04033974 |
| NAPA | G40502-1010 |
