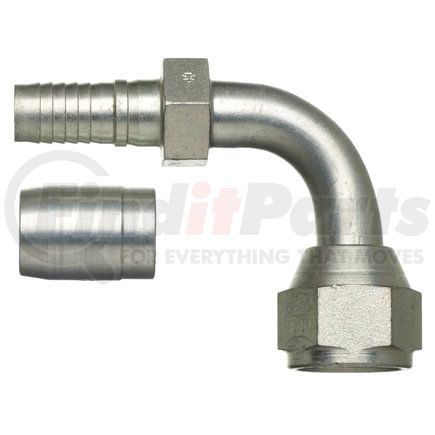

Gates G40179-0808 - Female JIC 37 Flare Swivel - 90 Bent Tube - Steel (C14)
$6249
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female JIC 37 Flare Swivel - 90 Bent Tube - Steel (C14)
Features & Benefits
- Designed to perform with C14 hose
- Stainless steel, brass or carbon steel
- Recommended for air compressor discharge, hot oil and fluids, hot and greasy environments
- Compliant to SAE100 R14 specification
Product Attributes
| Coupling Description | C14 Female JIC 37 Flare Swivel - 90 Bent Tube - Steel |
| Industrial Description | 8C14-8FJX90 |
| Thread Size | 3/4-16 |
| Inside Diameter | .406 IN |
| Hydraulic Hose Recommendation | Gates C14 & C14CT |
| Nut Hex Size | .875 IN |
| Drop Length | 1.18 IN |
| Cut-Off Length | 1.5 IN |
| Length | 2.1 IN |
| Inside Diameter | 10.3 MM |
| Drop Length | 30 MM |
| Cut-Off Length | 38.1 MM |
| Length | 53.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053176438 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
