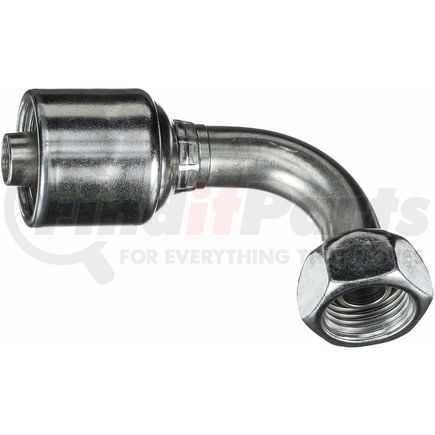

Name: Gates G25832-0606 Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube (MegaCrimp)
SKU: g258320606
Price: 39.99 USD
Availability: InStock

GATES part description

Product Description

Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube (MegaCrimp)

Features & Benefits

Robust "bite-the-wire" crimp
Robust “bite-the-wire” crimp
Tested to an industry-leading 1,000,000 impulse cycles
Simplifies inventory management
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard

Product Attributes

Coupling Description	MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube
Industrial Description	6G-6FBSPORX90
Thread Size	3/8-19
Inside Diameter	.375 IN
Hydraulic Hose Recommendation	Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Nut Hex Size	22 MM
Drop Length	1.26 IN
Cut-Off Length	1.34 IN
Length	2.44 IN
Seal Type	Mated Angle w/O-Ring
Termination	British
O-Ring Location	On Female w/Inverted Nose Seat
Seat Angle	30
Gender	Female
Bent Tube Angle	90
Swivel	Yes
Inside Diameter	9.5 MM
Drop Length	32 MM
Cut-Off Length	34 MM
Length	61.9 MM
