GATES G25831-1212 Part Description
Manufacturer
Product Description

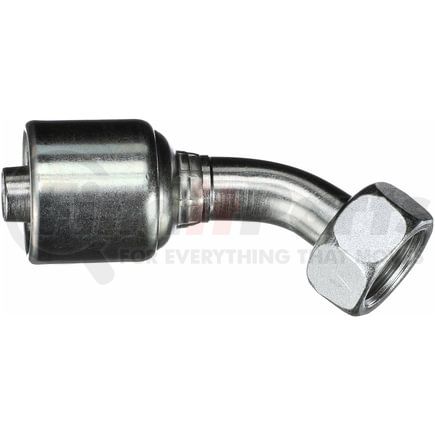

Female British Standard Parallel Pipe O-Ring Swivel - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25831-1212 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel - 45 Bent Tube |
| Industrial Description | 12G-12FBSPORX45 |
| Thread Size | 3/4-14 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 32 MM |
| Drop Length | 11.1 IN |
| Cut-Off Length | 2.54 IN |
| Length | 4.05 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | British |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 30 |
| Gender | Female |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| Inside Diameter | 19.1 MM |
| Drop Length | 28.3 MM |
| Cut-Off Length | 64.4 MM |
| Length | 102.9 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053438222 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25831-1212 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1A12BFA12, 1B12BFA12 |
| Dayco | 116239, HY12-12BPF45T |
| Goodyear | 14115-1212, B2-BPFX45-1212, UC-BPFX45-1212 |
| Hydraulink | S60-1212 |
| Kurt Hydraulics | F-BSPX45-12-12 |
| N/A | 04032765, M20542-12-12, M20543-12-12 |
| NAPA | G25831-1212 |
| Parker | 1B143-12-12 |
| Weatherhead | 12U52P, 12Z52P, 12U-52P, 12Z-52P |
