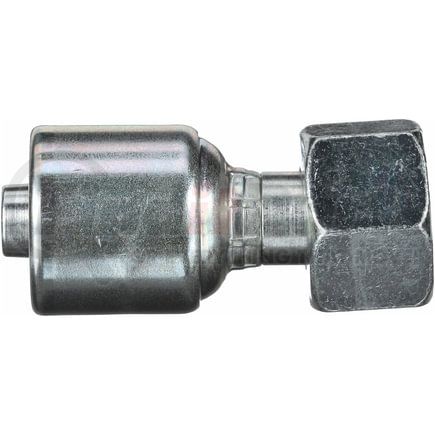

(888) 312-8812 Login SignupGATES G25720-1625 Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
Tap to view 3 more
$11449
Limited availability at this price!
In Stock
Get it by Tuesday, Sep 8
GATES G25720-1625 Part Description
Manufacturer
Product Description
Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25720-1625 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring |
| Industrial Description | 16G-25FDHORX |
| Thread Size | M36X2.0 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 25 MM |
| Nut Hex Size | 46 MM |
| Cut-Off Length | 1.8 IN |
| Length | 4.04 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Heavy |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 25.4 MM |
| Cut-Off Length | 45.7 MM |
| Length | 102.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053571875 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25720-1625 Cross References
| Brand | Part Number |
|---|---|
| Caterpillar | 116-0445 |
| Continental Belt | B2-DHFX-1636 |
| Goodyear | 14210-1642, B2-DHFX-1642, UC-DHFX-1642 |
| N/A | 04032623 |
| NAPA | G25720-1625 |
| Parker | 1C943-25-16 |
