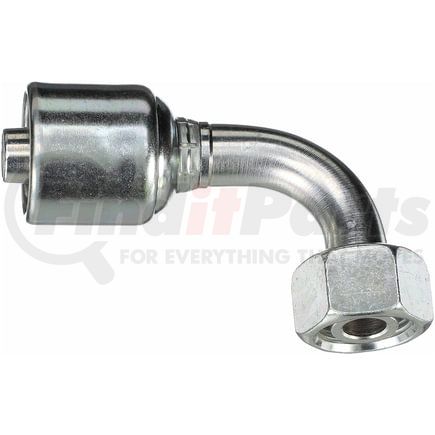

Name: Gates G25655-0815 CL12-COUPLING
SKU: g256550815
Price: 59.99 USD
Availability: InStock

Female DIN 24 Cone Swivel - Light Series with O-Ring - 90 Bent Tube (MegaCrimp)

Robust "bite-the-wire" crimp
Robust “bite-the-wire” crimp
Tested to an industry-leading 1 million impulse cycles
Simplifies inventory management
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard

Coupling Description	MegaCrimp Female DIN 24 Cone Swivel - Light Series w/ O-Ring - 90 Bent Tube
Industrial Description	8G-15FDLORX90
Thread Size	M22X1.5
Inside Diameter	.5 IN
Hydraulic Hose Recommendation	Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Outside Diameter	15 MM
Nut Hex Size	27 MM
Drop Length	1.65 IN
Cut-Off Length	1.59 IN
Length	2.87 IN
Seal Type	Mated Angle w/O-Ring
Termination	DIN
O-Ring Location	On Female w/Inverted Nose Seat
Seat Angle	24
DIN Series	Light
Gender	Female
Bent Tube Angle	90
Swivel	Yes
Inside Diameter	12.7 MM
Drop Length	42 MM
Cut-Off Length	40.4 MM
Length	72.9 MM
