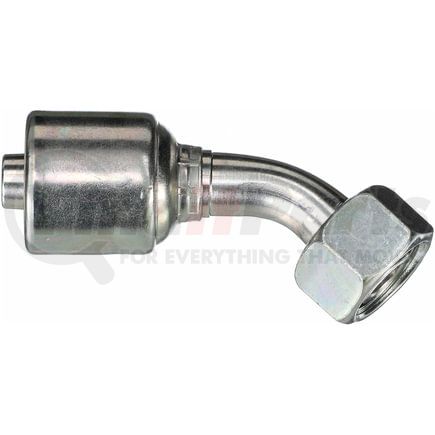

(888) 312-8812 Login SignupGATES G25650-0610 Female DIN 24 Cone Swivel - Light Series with O-Ring - 45 Bent Tube (MegaCrimp)
Tap to view 3 more
MSRP: $38.37
$1949
Save $18.88
Limited availability at this price!
In Stock
Get it by Tuesday, Aug 25
GATES G25650-0610 Part Description
Manufacturer
Product Description
Female DIN 24 Cone Swivel - Light Series with O-Ring - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25650-0610 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Light Series w/ O-Ring - 45 Bent Tube |
| Industrial Description | 6G-10FDLORX45 |
| Thread Size | M16X1.5 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 10 MM |
| Nut Hex Size | 19 MM |
| Drop Length | .73 IN |
| Cut-Off Length | 1.59 IN |
| Length | 2.5 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Light |
| Gender | Female |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| Drop Length | 18.6 MM |
| Cut-Off Length | 40.5 MM |
| Length | 63.6 MM |
Additional Information
| Country of Origin (Primary) | CZ |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053447187 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25650-0610 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1A8DLA6 |
| Caterpillar | 124-2214 |
| Dayco | 116310 |
| Goodyear | 14245-0616 |
| N/A | 04032576, M21543-06-16 |
| NAPA | G25650-0610 |
| Parker | 1C443-10-06, 1C443-10-6, 1CE43-10-06 |
| Weatherhead | 06U10D, 06Z10D, 06U-10D, 06Z-10D |
