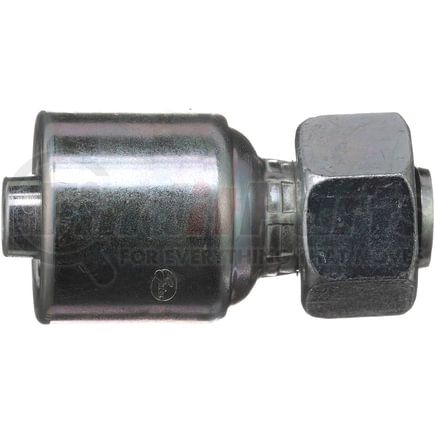

(888) 312-8812 Login SignupGATES G25645-1018 Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)
Tap to view 3 more
$3849
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 8
GATES G25645-1018 Part Description
Manufacturer
Product Description
Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25645-1018 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Light Series w/ O-Ring |
| Industrial Description | 10G-18FDLORX |
| Thread Size | M26X1.5 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 18 MM |
| Nut Hex Size | 32 MM |
| Cut-Off Length | 1.16 IN |
| Length | 2.36 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Light |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 29.5 MM |
| Length | 60 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053401172 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25645-1018 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1A16DL10, 1B10DL6, 1B16DL10 |
| Caterpillar | 124-2208, 124-2237 |
| Dayco | 116166 |
| Goodyear | 14240-1026, B2-DLFX-1026 |
| Kurt Hydraulics | F-DINLX-10-26 |
| N/A | 04032567, M21513-10-26 |
| NAPA | G25645-1018 |
| Parker | 1C343-18-10, 1CA43-18-10 |
| Weatherhead | 10U18C, 10Z18C, 10U-18C, 10Z-18C |
