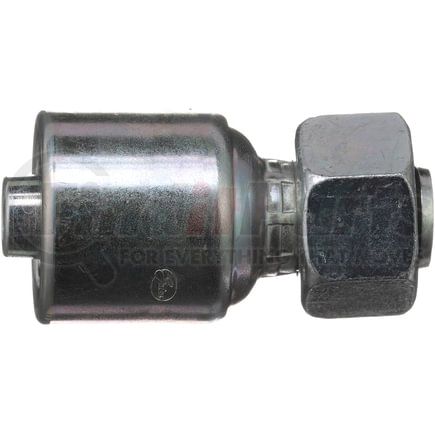

Name: Gates G25645-0612 6G 12FDLORX
SKU: g256450612
Price: 21.49 USD
Availability: InStock

GATES G25645-0612 Part Description

Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)

Robust "bite-the-wire" crimp
Robust “bite-the-wire” crimp
Tested to an industry-leading 1 million impulse cycles
Simplifies inventory management
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard

GATES G25645-0612 Specifications

Coupling Description	MegaCrimp Female DIN 24 Cone Swivel - Light Series w/ O-Ring
Industrial Description	6G-12FDLORX
Thread Size	M18X1.5
Inside Diameter	.375 IN
Hydraulic Hose Recommendation	Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Outside Diameter	12 MM
Nut Hex Size	22 MM
Cut-Off Length	1.08 IN
Length	2.19 IN
Seal Type	Mated Angle w/O-Ring
Termination	DIN
O-Ring Location	On Female w/Inverted Nose Seat
Seat Angle	24
DIN Series	Light
Gender	Female
Bent Tube Angle	Straight
Swivel	Yes
Inside Diameter	9.5 MM
Cut-Off Length	27.5 MM
Length	55.5 MM

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8412909015
UPC	00072053401424
VMRS Code	059032012
UNSPSC	31163000
