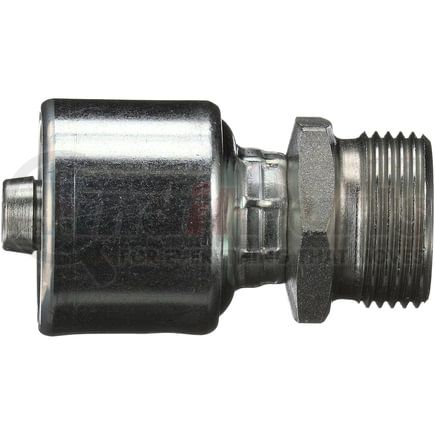

(888) 312-8812 Login SignupGATES G25615-0615 Male DIN 24 Cone - Light Series (MegaCrimp)
Tap to view 3 more
$6349
Limited availability at this price!
In Stock
Get it by Monday, Aug 24
GATES G25615-0615 Part Description
Manufacturer
Product Description
Male DIN 24 Cone - Light Series (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25615-0615 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male DIN 24 Cone - Light Series |
| Industrial Description | 6G-15MDL |
| Thread Size | M22X1.5 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 15 MM |
| Stem Hex Size | 24 MM |
| Cut-Off Length | .94 IN |
| Length | 1.86 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Light |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 23.9 MM |
| Length | 47.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00770075809531 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25615-0615 Cross References
| Brand | Part Number |
|---|---|
| Dayco | 101793, 116128 |
| Goodyear | 14255-0622 |
| N/A | 925006372, M11110-06-22 |
| NAPA | G25615-0615 |
