GATES G25300-1010 Part Description
Manufacturer
Product Description

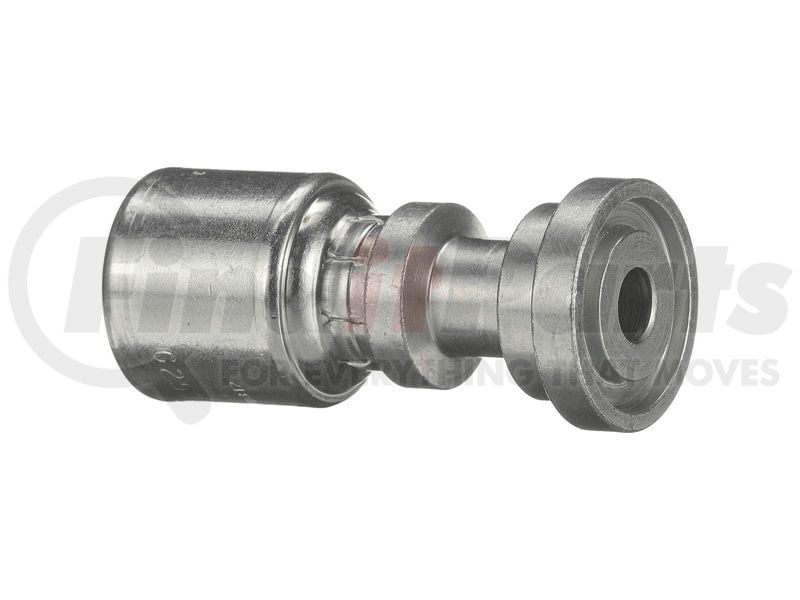

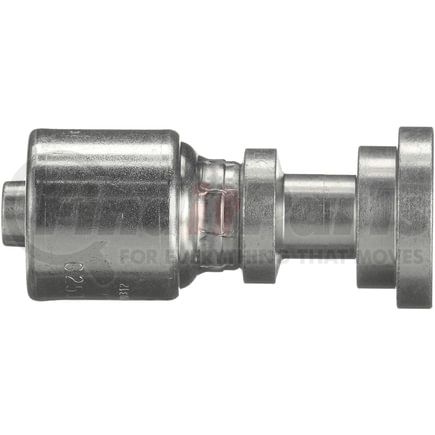

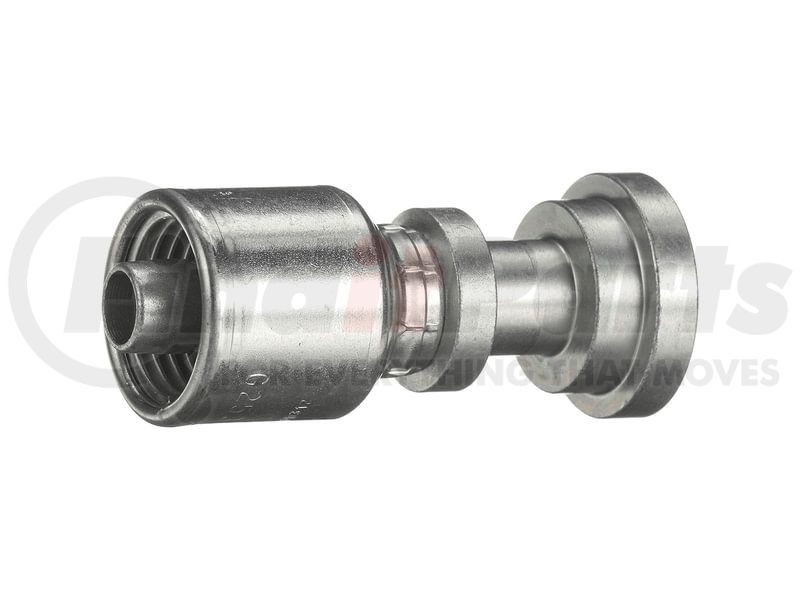

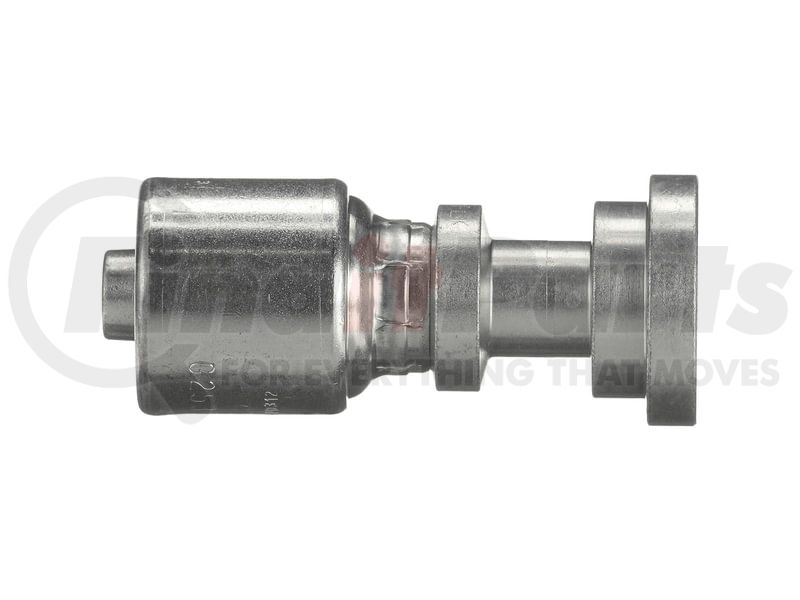

Code 61 O-Ring Flange (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25300-1010 Specifications
Product Attributes
| Coupling Description | MegaCrimp Komatsu O-Ring Flange - Straight |
| Industrial Description | 10G-10FLK |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |

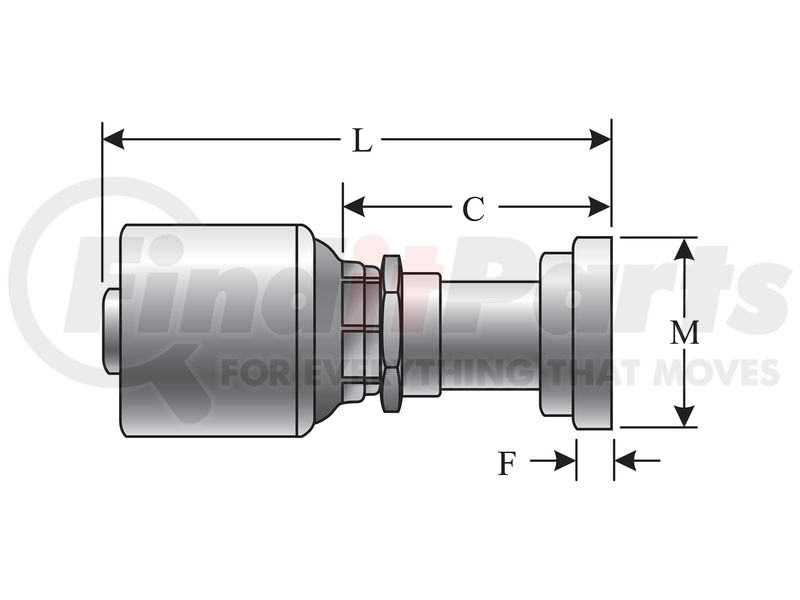

| Flange Thickness | .27 in |
| Flange Diameter | 1.35 IN |
| Cut-Off Length | 3.21 IN |
| Length | 4.69 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flange Groove |
| Termination | Komatsu |
| Bent Tube Angle | Straight |
| Inside Diameter | 15.9 MM |
| Flange Thickness | 6.9 MM |
| Flange Diameter | 34.3 MM |
| Cut-Off Length | 81.5 MM |
| Length | 119 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053205633 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25300-1010 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1A10KS10 |
| Dayco | 134011 |
| Goodyear | 14530-1010, B2-KF-1010 |
| N/A | 04032795 |
| NAPA | G25300-1010 |
| Parker | 11543-10-10 |
| Weatherhead | 10UG09, 10UG69, 10UK09, 10ZG09, 10U-G09, 10U-G69, 10U-K09, 10Z-G09 |
