Gates G25235-0406 - 4G-6FFORX45
$3599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

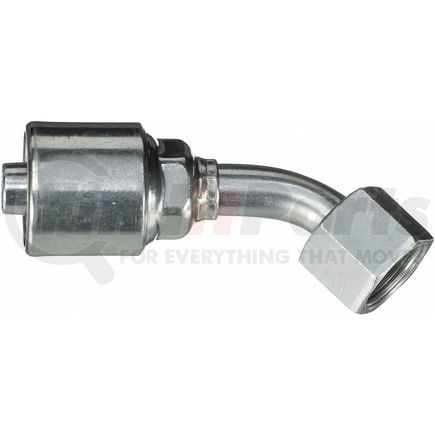

Female Flat-Face O-Ring Swivel - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel - 45 Bent Tube |
| Industrial Description | 4G-6FFORX45S |
| Thread Size | 11/16-16 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 22 MM |
| Drop Length | .43 IN |
| Cut-Off Length | 1.67 IN |
| Length | 2.7 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flat Face O-Ring |
| Gender | Female |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| Bulkhead | No |
| Inside Diameter | 6.4 MM |
| Drop Length | 11 MM |
| Cut-Off Length | 42.5 MM |
| Length | 68.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053173567 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1AA6FRA4
- Parker 1J743-06-04
- Parker 1J743-6-4
- Parker 1J7HY-6-4
- Dayco 101360
- Dayco 108741
- Dayco 151741
- Weatherhead 04EEL66
- Weatherhead 04EL66
- Weatherhead 04UL66
- Weatherhead 04ZL66
- Caterpillar 124-2129
- Goodyear 13710-0406
- Goodyear 14710-0406
- Goodyear B2-OFFX45-0406
- Goodyear UC-OFFX45-0406
- NAPA G25235-0406
- Kurt Hydraulics FFX45-04-06
