(888) 312-8812 Login SignupGATES G25179-0812 Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)
Tap to view 3 more
$6899
Limited availability at this price!
In Stock
Get as soon as Tuesday, Oct 13
GATES G25179-0812 Part Description
Manufacturer
Product Description

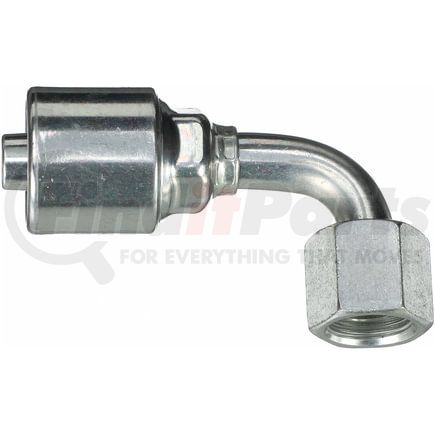

Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25179-0812 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 8G-12FJX90S |
| Thread Size | 1 1/16-12 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 32 MM |
| Drop Length | 1.89 IN |
| Cut-Off Length | 2.8 IN |
| Length | 4.28 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 12.7 MM |
| Drop Length | 48 MM |
| Cut-Off Length | 71.2 MM |
| Length | 108.7 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053530766 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25179-0812 Cross References
| Brand | Part Number |
|---|---|
| Caterpillar | 124-2009 |
| Continental Belt | B2-JCFX90-0812 |
| Dayco | 108611, 151611 |
| Eaton | 1AA12FJB8 |
| Goodyear | 14445-0812 |
| N/A | 04032010, M22593-08-12 |
| NAPA | G25179-0812 |
| Parker | 13943-12-08, 13943-12-8, 139HY-12-8 |
