GATES G25179-0604 Part Description
Manufacturer
Product Description

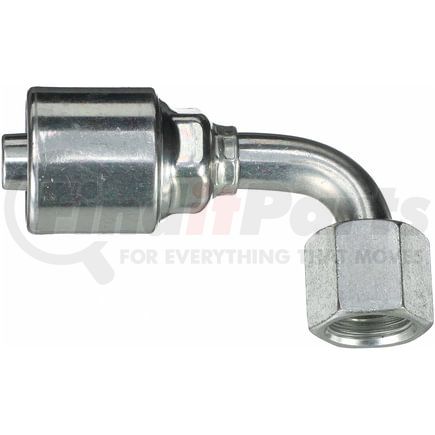

Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25179-0604 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 6G-4FJX90S |
| Thread Size | 7/16-20 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 14 MM |
| Drop Length | .83 IN |
| Cut-Off Length | 1.5 IN |
| Length | 2.6 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| Drop Length | 21 MM |
| Cut-Off Length | 38.2 MM |
| Length | 66.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053828795 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25179-0604 Part Interchanges
| Brand | Part Number |
|---|---|
| Dayco | 108393, 108603A |
| Weatherhead | 06U664 |
| Caterpillar | 124-2004 |
| NAPA | G25179-0604 |
