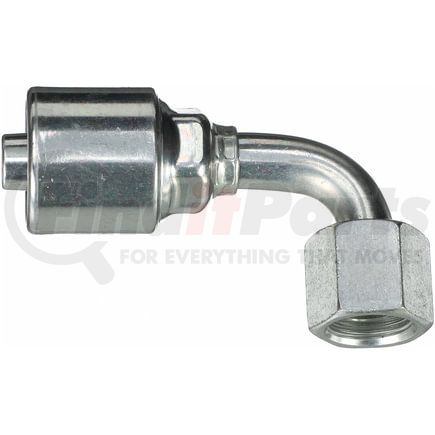

Gates G25179-0406 - Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)
$3349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 4G-6FJX90S |
| Thread Size | 9/16-18 |
| Inside Diameter | .25 IN |
| 9952 | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| 9923 | 19 MM |
| Drop Length | .91 IN |
| 9929 | 1.78 IN |
| Length | 2.8 IN |
| Seal Type | Mated Angle |
| 9955 | Standard |
| 9935 | 37 |
| Gender | Female |
| 9934 | 90 |
| Swivel | Yes |
| Inside Diameter | 6.4 MM |
| 1874 | 23 MM |
| 9929 | 45.1 MM |
| Length | 71.2 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053323214 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1AA6FJB4
- Parker 13943-06-04
- Parker 13943-6-4
- Parker 139HY-6-4
- Dayco 101210
- Dayco 108602
- Weatherhead 04U666
- Weatherhead 04Z666
- Caterpillar 124-2002
- Goodyear 13445-0406
- Goodyear 13445-0604
- Goodyear 14445-0406
- Goodyear 14445-0604
- Goodyear B2-JCFX90S-0406
- Goodyear B2-JCFX90S-0604
- Goodyear UC-JCFX90S-0406
- NAPA G25179-0406
