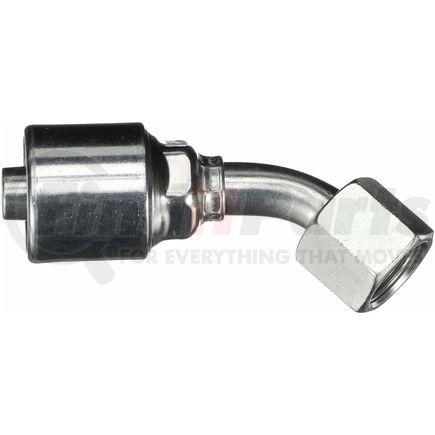

G25175-0810 by GATES - CL13-8G-10FJX45
Tap to view 3 more
G25175-0810 by GATES - CL13-8G-10FJX45
G25175-0810 by GATES - CL13-8G-10FJX45
G25175-0810 by GATES - CL13-8G-10FJX45

Gates G25175-0810 - CL13-8G-10FJX45

Part Number
G25175-0810
Manufacturer
GATES
Description

CL13-8G-10FJX45

details

$35.49

In stock

limited availability at this price!

New! No hassle Return Policy details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day
Get it by Thursday, Dec 4
Pay over 3-12 months with Affirm Logo. Learn more

GATES part description

Product Description

Female JIC 37 Flare Swivel - 45 Bent Tube (MegaCrimp)

Features & Benefits

  • Robust "bite-the-wire" crimp
  • Robust “bite-the-wire” crimp
  • Tested to an industry-leading 1 million impulse cycles
  • Simplifies inventory management
  • Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
  • Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard

Product Attributes

Coupling Description MegaCrimp Female JIC 37 Flare Swivel - 45 Bent Tube
Industrial Description 8G-10FJX45S
Thread Size 7/8-14
Inside Diameter .5 IN
Hydraulic Hose Recommendation Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Nut Hex Size 27 MM
Drop Length .63 IN
Cut-Off Length 2.34 IN
Length 3.81 IN
Seal Type Mated Angle
Nose Seat Type Standard
Mating Angle 37
Gender Female
Bent Tube Angle 45
Swivel Yes
Inside Diameter 12.7 MM
Drop Length 16 MM
Cut-Off Length 59.4 MM
Length 96.8 MM

Additional Information

Harmonized Tariff Code (Schedule B) 8412909015
Country of Origin (Primary) US
UPC 00072053172089
VMRS Code 059032012
UNSPSC 31163000

Part Interchanges

California Proposition 65 Warning California residents see Prop 65 Warning(s)
