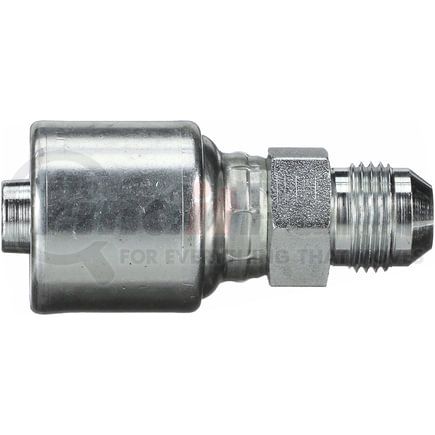

GATES G25165-1010 Part Description
Manufacturer
Product Description
Male JIC 37 Flare (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25165-1010 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male JIC 37 Flare |
| Industrial Description | 10G-10MJ |
| Thread Size | 7/8-14 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 27 MM |
| Cut-Off Length | 1.56 IN |
| Length | 3.03 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 39.5 MM |
| Length | 77 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053171730 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25165-1010 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA10MJ10 |
| Parker | 10343-10-10, 103HY-10-10 |
| Dayco | 108222 |
| Weatherhead | 10U510, 10Z510 |
| Goodyear | 14450-1010, B2-JCM-1010 |
| NAPA | G25165-1010 |
| Kurt Hydraulics | MJ-10-10 |
