Gates G25105-1212 - 12G-12MPX
$4399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

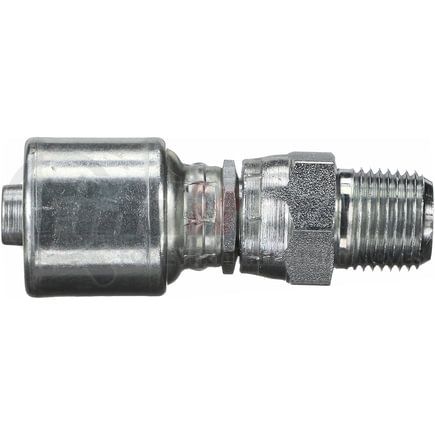

Male Pipe Swivel (NPTF - Without 30 Cone Seat) (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | MegaCrimp Male Pipe Swivel (NPTF - w/o 30 Cone Seat) |
| Industrial Description | 12G-12MPX |
| Thread Size | 3/4-14 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 1.063 IN |
| Nut Hex Size | 1.3125 IN |
| Cut-Off Length | 2.01 IN |
| Length | 4.01 IN |
| Seal Type | Thread Interference |
| Thread Angle | 60 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 19.1 MM |
| Cut-Off Length | 51 MM |
| Length | 101.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00072053322798 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1AA12PS12
- Aeroquip FJ9126-1212S
- Parker 11343-12-12
- Parker 11358-12-12
- Parker 113HY-12-12
- Dayco 108195
- Dayco 108361
- Weatherhead 12EEJ12
- Weatherhead 12EJ12
- Weatherhead 12UJ12
- Weatherhead 12ZJ12
- Caterpillar 124-1921
- Goodyear 14645-1212
- Goodyear 36645-1212
- Goodyear B2-NPMX-1212
- NAPA G25105-1212
- Kurt Hydraulics MPX-12-12
