GATES G20615-1222 Part Description
Manufacturer
Product Description

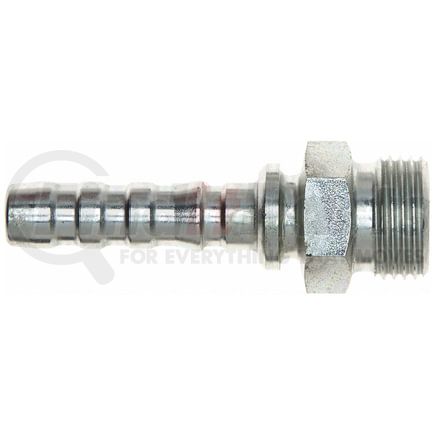

Male DIN 24 Cone - Light Series (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20615-1222 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Male DIN 24 Cone - Light Series |
| Industrial Description | 12GS-22MDL |
| Thread Size | M30X2.0 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Outside Diameter | 22 MM |
| Stem Hex Size | 32 MM |
| Cut-Off Length | 1.12 IN |
| Length | 3.13 IN |
| Inside Diameter | 19.1 MM |
| Cut-Off Length | 28.5 MM |
| Length | 79.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053497366 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20615-1222 Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | G20615-1222 |
