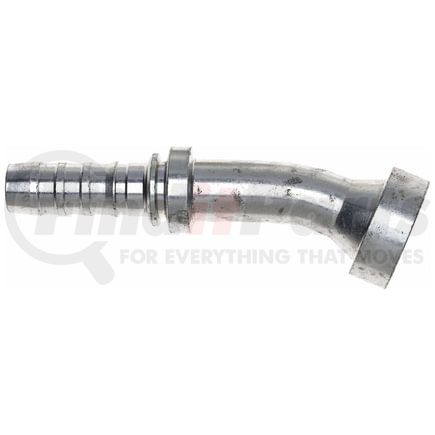

Gates G20402-1616 - Caterpillar Style O-Ring Flange - 22 1/2 Bent Tube (GlobalSpiral)
$12099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Caterpillar Style O-Ring Flange - 22 1/2 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | GlobalSpiral Caterpillar Style O-Ring Flange - 22 1/2 Bent Tube |
| Industrial Description | 16GS-16FLC22-017 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Flange Thickness | .56 in |
| Flange Diameter | 1.88 IN |
| Drop Length | .67 IN |
| Cut-Off Length | 3.78 IN |
| Length | 6.02 IN |
| Inside Diameter | 25.4 MM |
| Flange Thickness | 14.2 MM |
| Flange Diameter | 47.8 MM |
| Drop Length | 17 MM |
| Cut-Off Length | 95.9 MM |
| Length | 152.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053297300 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
