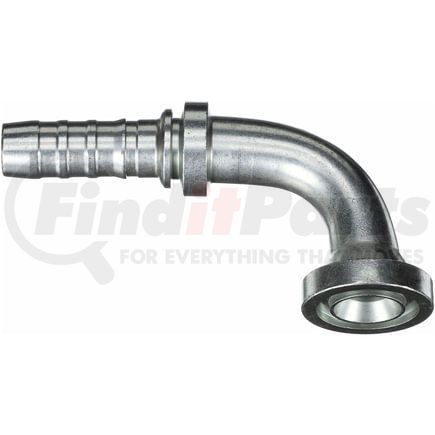

Name: Gates G20365-2020 Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
SKU: g203652020
Price: 144.99 USD
Availability: InStock

GATES part description

Product Description

Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)

Features & Benefits

"Bite-the-wire" crimp for improved coupling retention
“Bite-the-wire” crimp for improved coupling retention
Tested to an industry-leading 1,000,000 impulse cycles
+250degF temperature capability for longer assembly life
+250°F temperature capability for longer assembly life
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard

Product Attributes

Coupling Description	GlobalSpiral Code 62 O-Ring Flange Heavy - 90 Bent Tube
Industrial Description	20GS-20FLH90M
Inside Diameter	1.25 IN
Hydraulic Hose Recommendation	All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
Maximum Working Pressure	6000 PS
Flange Thickness	.41 in
Flange Diameter	2.13 IN
Drop Length	3.54 IN
Cut-Off Length	3.7 IN
Length	6.5 IN
Inside Diameter	31.8 MM
Flange Thickness	10.4 MM
Flange Diameter	54.1 MM
Drop Length	89.9 MM
Cut-Off Length	93.9 MM
Length	165.1 MM
