(888) 312-8812 Login SignupGATES G20331-1212 Code 61 O-Ring Flange - 135 Bent Tube (GlobalSpiral)
Tap to view 3 more
$148.06
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES G20331-1212 Part Description
Manufacturer
Product Description

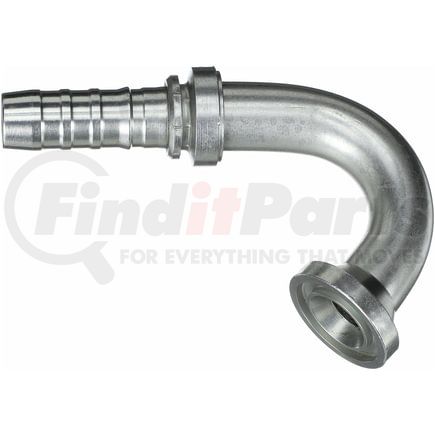

Code 61 O-Ring Flange - 135 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20331-1212 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 135 Bent Tube |
| Industrial Description | 12GS-12FL135-070 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 5000 PS |
| Flange Thickness | .27 in |
| Flange Diameter | 1.5 IN |
| Drop Length | 2.76 IN |
| Cut-Off Length | 1.81 IN |
| Length | 3.82 IN |
| Inside Diameter | 19.1 MM |
| Flange Thickness | 6.9 MM |
| Flange Diameter | 38.1 MM |
| Drop Length | 70.1 MM |
| Cut-Off Length | 46 MM |
| Length | 97 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | N |
| UPC | 00072053699760 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20331-1212 Cross References
| Brand | Part Number |
|---|---|
| Goodyear | 29355-1212 |
| N/A | 04031029, M23301-12-12T |
| NAPA | G20331-1212 |
| Weatherhead | 43012EH92, 43012UH92, 43012U-H92, 43012E-H92 |
