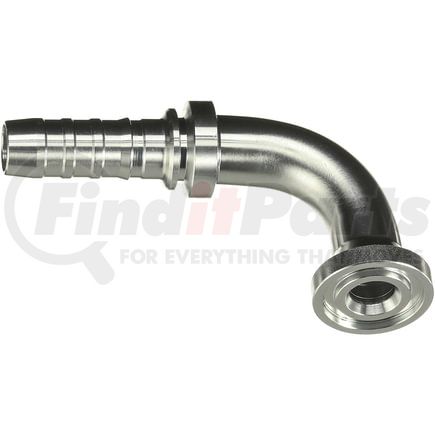

Gates G20317-1616 - 16GS 16FL90 120
$10249
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 90 Bent Tube |
| Industrial Description | 16GS-16FL90-120 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 5000 PS |
| Flange Thickness | .32 in |
| Flange Diameter | 1.75 IN |
| Drop Length | 4.72 IN |
| Cut-Off Length | 3.06 IN |
| Length | 5.28 IN |
| Inside Diameter | 25.4 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 44.5 MM |
| Drop Length | 119.9 MM |
| Cut-Off Length | 77.6 MM |
| Length | 134.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053435061 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
