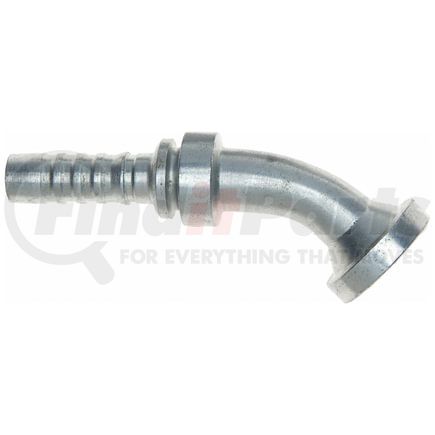

Gates G20307-1616 - 16GS 16FL45M
$7849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Code 61 O-Ring Flange - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 45 Bent Tube |
| Industrial Description | 16GS-16FL45M |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 5000 PS |
| Flange Thickness | .32 in |
| Flange Diameter | 1.75 IN |
| Drop Length | 1.26 IN |
| Cut-Off Length | 3.57 IN |
| Length | 5.79 IN |
| Inside Diameter | 25.4 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 44.5 MM |
| Drop Length | 32 MM |
| Cut-Off Length | 90.6 MM |
| Length | 147.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053297256 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1B16FLA16
- Aeroquip 1E16FLA16
- Parker 11771-16-16
- Parker 11778-16-16
- Dayco 100220U
- Dayco 102136
- Dayco 1B16FLA16
- Dayco FJ9789-1616S
- Weatherhead 43016EG46
- Weatherhead 43016UG46
- Weatherhead 47016EEG46
- Weatherhead 47016EG46
- Weatherhead 4SP16WG46
- Goodyear 28340-1616
- Goodyear 29340-1616
- Goodyear DG-FL45-1616
- NAPA G20307-1616
