(888) 312-8812 Login SignupGATES G20239-0810 Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
Tap to view 3 more
$8099
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
GATES G20239-0810 Part Description
Manufacturer
Product Description

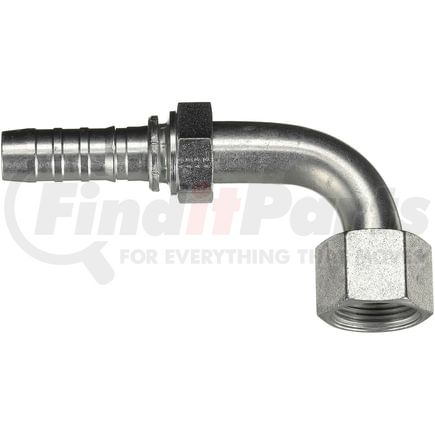

Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20239-0810 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 8GS-10FFORX90S |
| Thread Size | 1-14 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 30 MM |
| Drop Length | 1.26 IN |
| Cut-Off Length | 2.5 IN |
| Length | 3.98 IN |
| Inside Diameter | 12.7 MM |
| Drop Length | 32 MM |
| Cut-Off Length | 63.5 MM |
| Length | 101.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053692419 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20239-0810 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA10FRB8, 4SA10FRB8 |
| Dayco | 101314, 101409 |
| Goodyear | 28725-0810, 29725-0810, S4-OFFX90S-0810 |
| N/A | 04030860 |
| NAPA | G20239-0810 |
| Parker | 1J971-10-08, 1J971-10-8 |
| Weatherhead | 43008EA30, 43008UA30, 43008E-A30, 43008U-A30 |
