GATES G20239-0606 Part Description
Manufacturer
Product Description

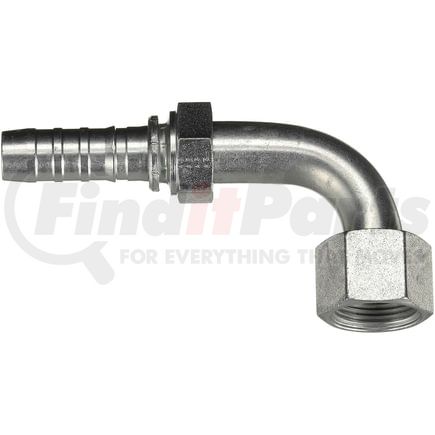

Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20239-0606 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 6GS-6FFORX90S |
| Thread Size | 11/16-16 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 22 MM |
| Drop Length | .91 IN |
| Cut-Off Length | 1.66 IN |
| Length | 3.07 IN |
| Inside Diameter | 9.5 MM |
| Drop Length | 23.1 MM |
| Cut-Off Length | 42.2 MM |
| Length | 78 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053437638 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20239-0606 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA6FRB6, 4SA6FRB6 |
| Caterpillar | 323-6164, 8T-7097, 6V-9947, 6V-9963 |
| Continental Belt | S4-OFFX90-0606 |
| Dayco | 101405, 1BA6FRB6 |
| Goodyear | 28725-0606, 29715-0606, 29725-0606, S4-OFFX90S-0606 |
| N/A | 04030857, 4009-0606 |
| NAPA | G20239-0606 |
| Parker | 1J971-06-06, 1J971-6-6 |
| Weatherhead | 43006U-A26, 43006UA26 |
