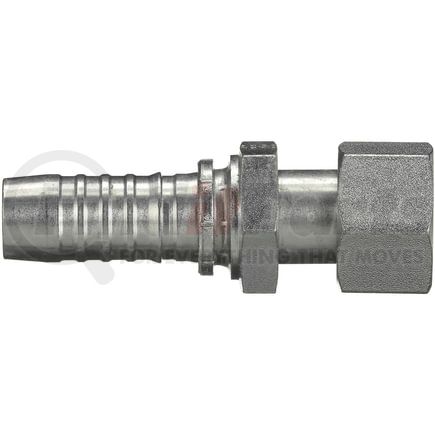

Gates G20230-1616 - 16GS 16FFORX
$6799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female Flat-Face O-Ring Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel |
| Industrial Description | 16GS-16FFORX |
| Thread Size | 1 7/16-12 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 41 MM |
| Nut Hex Size | 41 MM |
| Cut-Off Length | 2.15 IN |
| Length | 4.36 IN |
| Inside Diameter | 25.4 MM |
| Cut-Off Length | 54.6 MM |
| Length | 110.7 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| UPC | 00072053278514 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1BA16FR16
- Aeroquip 1EA16FR16
- Aeroquip 1ZA16FR16
- Aeroquip FJ9900-1616S
- Parker 1JC71-16-16
- Parker 1JS71-16-16
- Parker 1JS73-16-16
- Parker 1JS78-16-16
- Parker 1JS79-16-16
- Dayco 101343
- Dayco 102058
- Dayco 1BA16FR16
- Dayco FJ9900-1616S
- Weatherhead 43016ES76
- Weatherhead 43016US76
- Weatherhead 47016EES76
- Weatherhead 47016ES76
- Weatherhead 4SP16WJ76
- Goodyear 28700-1616
- Goodyear 29700-1616
- Goodyear DG-OFFX-1616
- Goodyear S4-OFFX-1616
- Goodyear S6-OFFX-1616
- NAPA G20230-1616
- Kurt Hydraulics FFX-16-16-WHP
