GATES G20230-0808 Part Description
Manufacturer
Product Description

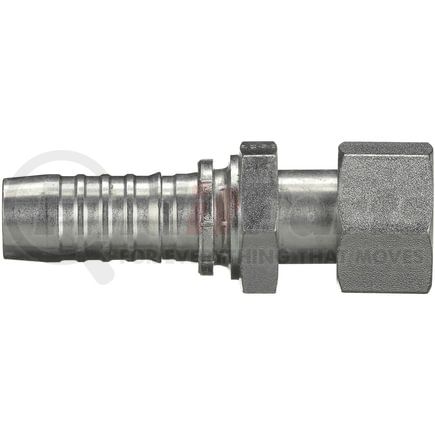

Female Flat-Face O-Ring Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20230-0808 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel |
| Industrial Description | 8GS-8FFORX |
| Thread Size | 13/16-16 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 24 MM |
| Nut Hex Size | 24 MM |
| Cut-Off Length | 1.34 IN |
| Length | 2.87 IN |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 34 MM |
| Length | 72.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053278330 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20230-0808 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA8FR8, 4SA8FR8 |
| Caterpillar | 6V-9949, 8T-7099, 6V-9965 |
| Continental Belt | SG-OFFX-0808 |
| Dayco | 101328, 1BA8FR8 |
| Goodyear | 28700-0808, 29700-0808, S4-OFFX-0808 |
| N/A | T7800-0813, 04030815, 4005-0808, T780-0813 |
| NAPA | G20230-0808 |
| Parker | 1JC71-08-08, 1JC71-8-8, 1JS71-08-08, 1JS71-8-8, 1JC77-8-8 |
| Weatherhead | 43008ES68, 43008US68, 43008E-S68, 43008U-S68 |
