GATES G20180-1616 Part Description
Manufacturer
Product Description

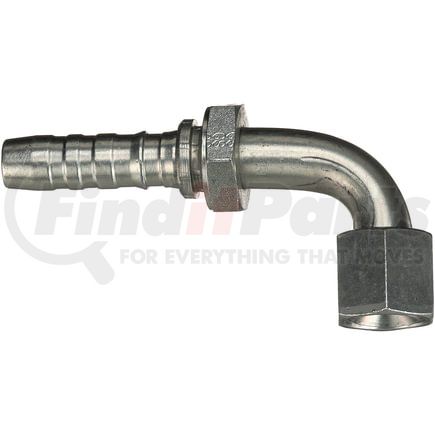

Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20180-1616 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 16GS-16FJX90M |
| Thread Size | 1 5/16-12 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 1.5 IN |
| Drop Length | 2.8 IN |
| Cut-Off Length | 3.45 IN |
| Length | 5.67 IN |
| Inside Diameter | 25.4 MM |
| Drop Length | 71.1 MM |
| Cut-Off Length | 87.6 MM |
| Length | 144 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053296983 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20180-1616 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA16FJB16, 6SA16FJB16, 4SA16FJB16 |
| Continental Belt | SG-JCFX90-1616 |
| Dayco | 101233, 102037, 1BA16FJB16, FJ9802-1616S |
| Goodyear | 28425-1616, 29425-1616, DG-JCFX90-1616, S4-JCFX90-1616 |
| N/A | T7240-1621, 04030775, N16-16FJ90M, C12422591-1616M, 616-1WM-676 |
| NAPA | G20180-1616 |
| Parker | 13973-16-16, 13978-16-16 |
| Weatherhead | 43016E676, 43016U656L33, 47016E676, 47016EE676, 4SP16W676, 43016E-676, 43016U-656L33, 47016E-676 |
