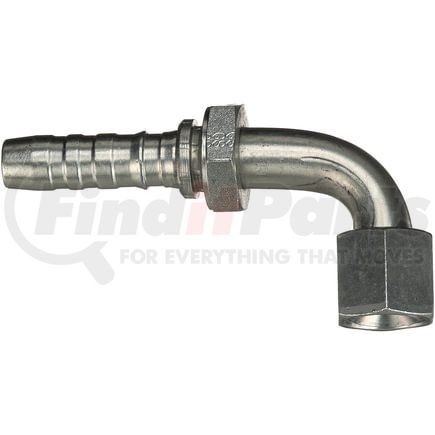

Gates G20180-1212 - 12GS 12FJX90M
$7749
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 12GS-12FJX90M |
| Thread Size | 1 1/16-12 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 1.25 IN |
| Drop Length | 2.28 IN |
| Cut-Off Length | 2.68 IN |
| Length | 4.45 IN |
| Inside Diameter | 19.1 MM |
| Drop Length | 57.9 MM |
| Cut-Off Length | 68 MM |
| Length | 113 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053402506 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1BA12FJB12
- Aeroquip 1EA12FJB12
- Parker 13978-12-12
- Dayco 101227
- Dayco 102035
- Dayco 1BA12FJB12
- Dayco FJ9802-1212S
- Weatherhead 43012E672
- Weatherhead 43012U672
- Weatherhead 47012E672
- Weatherhead 47012EE672
- Weatherhead 4SP12W672
- Goodyear 28425-1212
- Goodyear 29425-1212
- Goodyear S4-JCFX90-1212
- NAPA G20180-1212
