GATES G20180-0810 Part Description
Manufacturer
Product Description

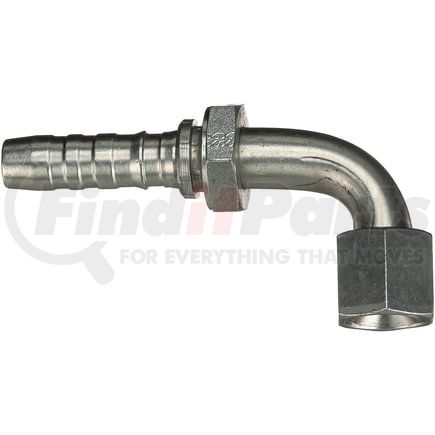

Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20180-0810 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 8GS-10FJX90M |
| Thread Size | 7/8-14 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 1.0625 IN |
| Drop Length | 1.85 IN |
| Cut-Off Length | 2.01 IN |
| Length | 3.5 IN |
| Inside Diameter | 12.7 MM |
| Drop Length | 47 MM |
| Cut-Off Length | 51 MM |
| Length | 88.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053310764 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20180-0810 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 4SA10FJB8 |
| Goodyear | 28425-0810, 29425-0810, S4-JCFX90-0810 |
| N/A | 04030766 |
| NAPA | G20180-0810 |
| Parker | 1L971-10-08, 1L971-10-8 |
| Weatherhead | 43008E650, 43008U650, 43008U670, 43008U-650, 43008U-670 |
