(888) 312-8812 Login SignupGATES G20170-2016 Female JIC 37 Flare Swivel (GlobalSpiral)
Tap to view 3 more
$11249
Limited availability at this price!
In Stock
Get it by Thursday, Jul 23
GATES G20170-2016 Part Description
Manufacturer
Product Description

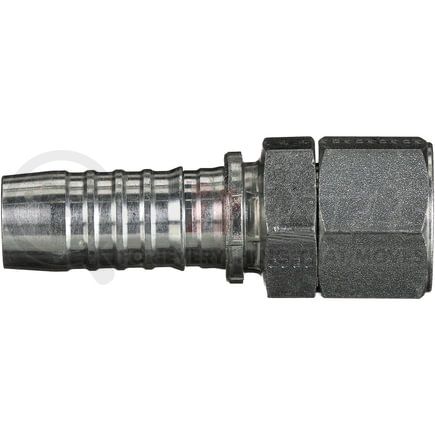

Female JIC 37 Flare Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20170-2016 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel |
| Industrial Description | 20GS-16FJX |
| Thread Size | 1 5/16-12 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 1.75 IN |
| Nut Hex Size | 1.625 IN |
| Cut-Off Length | 2.28 IN |
| Length | 5.08 IN |
| Inside Diameter | 31.8 MM |
| Cut-Off Length | 57.9 MM |
| Length | 129 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053465198 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20170-2016 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA16FJ20, 4SA16FJ20 |
| Dayco | 100668, 102014, 1BA16FJ20 |
| N/A | 04030723 |
| NAPA | G20170-2016 |
| Parker | 10678-16-20, 10671-16-20 |
