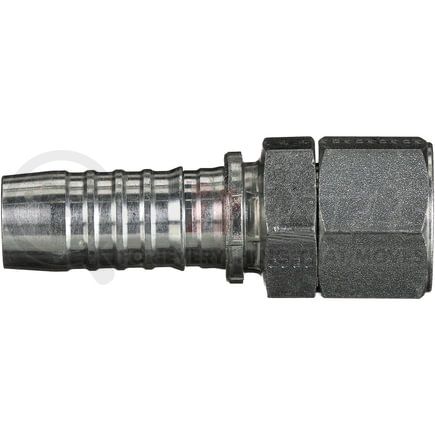

GATES G20170-1620 Part Description
Manufacturer
Product Description
Female JIC 37 Flare Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20170-1620 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel |
| Industrial Description | 16GS-20FJX |
| Thread Size | 1 5/8-12 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 1.5 IN |
| Nut Hex Size | 2 IN |
| Cut-Off Length | 2.31 IN |
| Length | 4.53 IN |
| Inside Diameter | 25.4 MM |
| Cut-Off Length | 58.6 MM |
| Length | 115.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053297478 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20170-1620 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA20FJ16, 1EA20FJ16, 4SA20FJ16 |
| Continental Belt | SG-JCFX-1620 |
| Dayco | 100667, 102013, 1BA20FJ16 |
| Goodyear | 28400-1620, 29400-1620, S4-JCFX-1620 |
| Kurt Hydraulics | FFX-16-20-W, FJX-16-20-W |
| N/A | 04030722, 4000-2016, 616-1W-620, M82712-16-20 |
| NAPA | G20170-1620 |
| Parker | 10671-20-16, 10677-20-16 |
| Weatherhead | 43016E620, 43016U620, 4SP16W620, 43016E-620, 43016U-620 |
