GATES G20170-1616 Part Description
Manufacturer
Product Description

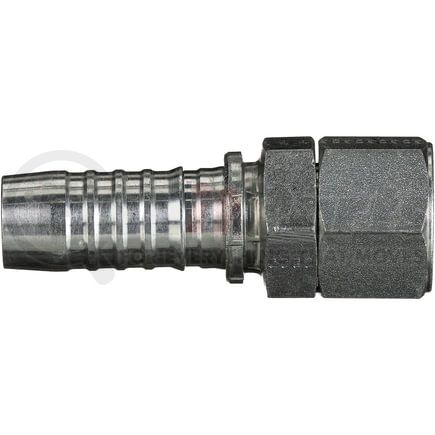

Female JIC 37 Flare Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20170-1616 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel |
| Industrial Description | 16GS-16FJX |
| Thread Size | 1 5/16-12 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 1.5 IN |
| Nut Hex Size | 1.5 IN |
| Cut-Off Length | 2.1 IN |
| Length | 4.3 IN |
| Inside Diameter | 25.4 MM |
| Cut-Off Length | 53.3 MM |
| Length | 109.2 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053297201 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20170-1616 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA16FJ16, 1EA16FJ16, 1ZA16FJ16, 4SA16FJ16 |
| Caterpillar | 3E-6831, 8S-3918 |
| Continental Belt | SG-JCFX-1616 |
| Dayco | 100666, 102012, 1BA16FJ16, FJ9782-1616S |
| Goodyear | 28400-1616, 29400-1616, 36400-1616, DG-JCFX-1616, S4-JCFX-1616, S6-JCFX-1616, UC-JCFX-1616 |
| Kurt Hydraulics | FFX-16-16-W, FJX-16-16-W, FJX-16-16-WHP |
| N/A | T7040-1617, 04030720, N16-16FJ, C12426511-1616, 4000-1616, 616-1W-616, M82712-16-16, T7040-1621, T904-1621, 6000-1616, 6164W-616, T7040-1624, T7040-2026, T704-2026, T9040-1621 |
| NAPA | G20170-1616 |
| Parker | 10671-16-16, 10673-16-16, 10678-16-16, 10677-16-16 |
| Weatherhead | 43016E616, 43016U616, 47016E616, 47016E696, 47016EE616, 47016EE696, 4SP16W616, 4SP16W696, 43016E-616, 43016U-616, 47016E-616, 47016E-696 |
