GATES G20170-1012 Part Description
Manufacturer
Product Description

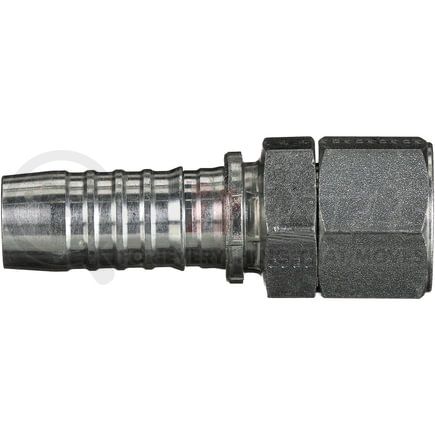

Female JIC 37 Flare Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20170-1012 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel |
| Industrial Description | 10GS-12FJX |
| Thread Size | 1 1/16-12 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 1 IN |
| Nut Hex Size | 1.25 IN |
| Cut-Off Length | 1.76 IN |
| Length | 3.74 IN |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 44.7 MM |
| Length | 95 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053434705 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20170-1012 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA12FJ10, 4SA12FJ10 |
| Caterpillar | 221-0576 |
| Dayco | 100654 |
| Goodyear | 28400-1012, 29400-1012, 36400-1012, S4-JCFX-1012 |
| Kurt Hydraulics | FFX-10-12-W, FJX-10-12-W |
| N/A | 04030707 |
| NAPA | G20170-1012 |
| Parker | 10671-12-10, 10677-12-10 |
| Weatherhead | 43010U612, 43010U-612 |
