GATES B46 Part Description
Manufacturer
Product Description

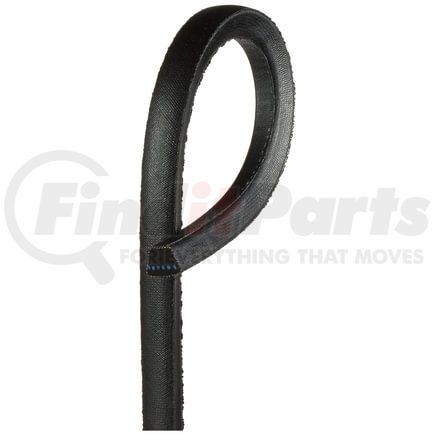

Hi-Power II Classical Section Wrapped V-Belt
Application Summary
Arctic Traveler, Challenger, , Mtr.
Features & Benefits
- Smoother running with less slip and wear for excellent belt service life and reduced pulley wear
- High-quality rubber compound protects the belt against heat, ozone and sunlight
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords strongly adhere to the body of the belt, resulting in equal load distribution and absorption of bending stress, fatigue and shock loads without cord deterioration
- Meets RMA oil and heat resistant standards and static conductivity requirements
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in A, B, C, D and E cross-sections as well as Hi-Power II PowerBand V-belts
GATES B46 Specifications
Product Attributes
| Type | Classical Section Wrapped V-Belt |
| Cross Section Designation | B |
| Strand Quantity | 1 |
| Top Width | .66 in |
| Outside Circumference | 49 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 17 mm |
| Outside Circumference | 1245 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053019308 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES B46 Cross References
| Brand | Part Number |
|---|---|
| <Unknown> | 05253471, 08034605, 15107, 153A575H09, 2045B55G38, 2168, 36003309, 5457A, 5H59829A46, 5H59831A46 |
| ACDelco | IB46 |
| Alliance Truck Parts | GTB46 |
| Allis Chalmers | 1109103, 518463, 525347, 70525347, 70803460, 803460, 803461 |
| Arctic Traveler | 4750108 |
| Art Way Manufacturing Co | 005420 |
| Black Welders | V4049 |
| Browning Manufacturing | B46 |
| Bush Hog | 68096 |
| CARQUEST | B46 |
| CCIL Canada | C103X33, CI03X33 |
| CONTINENTAL AG | B46 |
| Carlisle | CR400399 |
| Clark Equipment | 711407 |
| Clay Equip | 03449 |
| Climax Engr | 22CX15, 22CX26, 41158 |
| Danuser | 11766 |
| Dayco | BP46 |
| Demco | 3X637 |
| Deutz | 1116085, 1116087 |
| Deutz-allis | 70803461 |
| Excel Ind | 8482 |
| Ford | 146620, 168791 |
| GOODYEAR BELTS | B46 |
| Gardner Denver | 13C83 |
| Gehl | 9H242, 9H2422B |
| General Electric | K5705475AE18, K5705475AS18 |
| Gilmore Products | GT4256045 |
| Goodyear | 77046, B46 |
| Grainger | 3X637 |
| Haban | S449 |
| Hamacheck | 90956 |
| Harnischfeger Ph Diesel | 7Z292D13 |
| Hesston | 855627, 855874, 857946 |
| Hutchinson | 32046 |
| International Harvester (IHC) | 27145K, 478262R91, 555062R1 |
| Jacobsen | 338548 |
| John Bean - FMC | 1108422 |
| John Deere | 553M0245A, AH62729, H24473, H62619, N117398 |
| Johnson | 66260 |
| Kaman | 1234 |
| MTD Products | 7540328, 9540328 |
| Magna | 507856 |
| Manitowoc | 227401 |
| Massey Ferguson | 581459M91 |
| Metric | 16C1250 |
| Mott | 000533, HP33 |
| NAPA | B46 |
| NAPA Belts/Hose | B46 |
| PIX | A-B46 |
| Reliance Electric | 107033 |
| Silver Streak | DBB46 |
| Sunshine Mower | A209, A210 |
| Tennant | 17159 |
| Thermo-King | 2045B55G60, 2045B55H38, 2045B55H60, 780340, 78340 |
| Towmotor | C629029C41 |
| U.S. Government | 3030001598291, 3030005290481, 3030007027942, MS392562B46, MS39256B46 |
| Unit Rig | 12684 |
| Versatile | 360717V1 |
| White | BXS11, BXS11A, CO10045, CO9060A |
| Yale | 6070E4004, 607K44 |
