Gates 8V4750 - Super HC Narrow Section Wrapped V-Belt
$80849
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

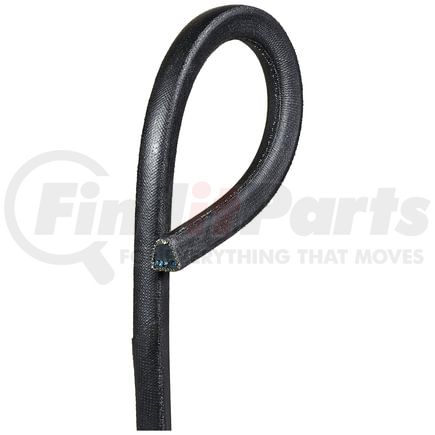

Super HC Narrow Section Wrapped V-Belt
Features & Benefits
- Up to 300 percent capacity increase over classical belts
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Belt Edge is machined for even pulley groove contact resulting in smoother running, less slip and wear
- Meets RMA oil and heat resistant standards and static conductivity requirements
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in 3V, 5V, and 8V cross-sections as well as Super HC PowerBand joined V-belts
Product Attributes
| Type | Narrow Section Wrapped V-Belt |
| Cross Section Designation | 8V |
| Strand Quantity | 1 |
| Top Width | 1 in |
| Outside Circumference | 475 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | Neoprene |
| Cord Material | Polyester |
| Top Width | 25 mm |
| Outside Circumference | 12065 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010391000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053016826 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
Part Interchanges
