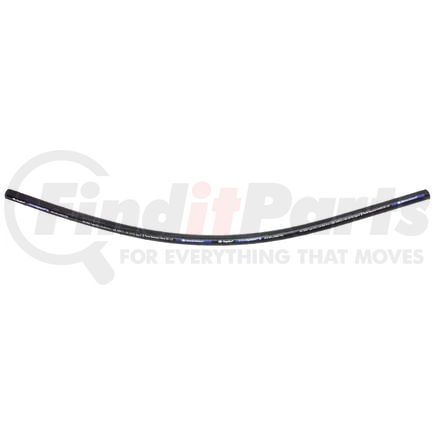

Gates 85494 - EFG4K Spiral Wire Hose - SAE 100R12
$84149
MSRP: $1,189.11
Save: $347.62
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
GATES part description
Product Description
EFG4K Spiral Wire Hose - SAE 100R12
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral One-Piece Couplings [G21 Series, -20 Only] and Stainless Steel Spiral Couplings [G18 Series]
- Tested to industry-leading 1,000,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Product Attributes
Product Type | EFG4K Spiral Wire Hose - SAE 100R12 |
Industrial Description | 12EFG4KX50FT |
Type | Hydraulic Hose |
Hose Pressure Description | Very High Pressure |
Maximum Working Pressure | 4000 PS |
Burst Pressure | 16000 PS |
Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
Length | 50 FT |
9941 | 12 |
Inside Diameter | .75 IN |
Outside Diameter | 1.21 IN |
9879 | 4.7 IN |
Tube Description | Black, Oil-Resistant, Synthetic Rubber |
Hose Material | Nitrile - Type C |
Reinforcement Material | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
Cover Type | Type A - Flame & Oil Resistant |
Cover Color | Black |
9856 | GlobalSpiral, Stainless Steel S |
9453 | 100R12 |
9954 | 856 R12 |
9953 | 18752 Grade D, 3862 Type R12 |
Additional Information
Country of Origin (Primary) | US |
Harmonized Tariff Code (Schedule B) | 4009410000 |
UPC | 00072053496659 |
VMRS Code | 059032029 |
UNSPSC | 40142020 |
