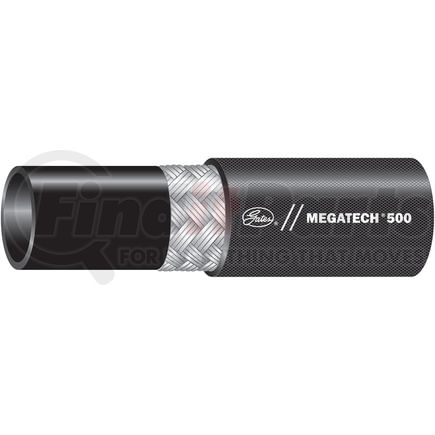

GATES 70855 MegaTech 500 High-Temp Oil-Air Return Hose

Name: Gates 70855 MegaTech 500 High-Temp Oil-Air Return Hose
SKU: 70855
Price: 53.7 USD
Availability: OutOfStock

$53.70

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

GATES 70855 Part Description

MegaTech 500 High-Temp Oil-Air Return Hose

For use with GL Couplings [G43 Series] and GlobalSpiral Plus Couplings [G22 Series]
500 PSI constant pressure for all ID's
Temperature Range: Petroleum-based Fluids: -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C); Phosphate Esters Fluids as recommended by the fluid manufacturer, but within a range of -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)

Product Type	MegaTech 500 High-Temp Oil-Air Return Hose
Industrial Description	32MEGATECH 500XCTN
Type	Fleet Application & Maintenance Hose
Hose Pressure Description	Medium Pressure
Maximum Working Pressure	500 PS
Burst Pressure	2000 PS
Temperature Rating	-40 Deg. F to +300 Deg. F (Petroleum-Base Fluid); -40 Deg. F to +212 Deg. F (Phosphate Ester Fluids)
Length	100 FT
Dash Size	32
Inside Diameter	2 IN
Outside Diameter	2.48 IN
Bend Radius	18 IN
Vacuum Rating	30 INHG
Tube Description	Black Tube Specifically Compounded for Temperature & Chemical Resistance
Hose Material	CPE - Type J
Reinforcement Material	One Braid of High-Tensile Steel Wire
Cover Material	Textile Braid, Impregnated w/ Synthetic Rubber
Cover Type	Oil & Mildew Resistant
Cover Color	Black
Coupling Recommendation	GL, GlobalSpiral Plus, Stainless Steel S
SAE Standard	N/A
EN Standard	N/A
ISO Standard	N/A
