GATES 70810 Part Description
Manufacturer
Product Description

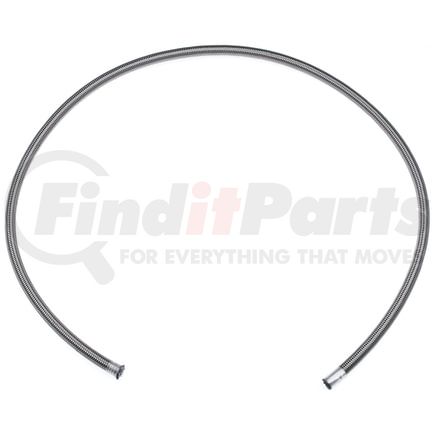

C14 PTFE Hose - SAE100R14 Type A - Non-Conductive
Features & Benefits
- For use with Brass and Stainless Steel C14 Couplings [G40 Series]
- Temperature Range: Dynamic: -65 Deg. F to +400 Deg. F (-54 Deg. C to +204 Deg. C); Static: -65 Deg. F to +450 Deg. F (-54 Deg. C to +232 Deg. C)
- NOTE: Electrostatic Discharge: Many applications involving PTFE hose do not require a conductive tube
- NOTE: But you must review the potential for electrostatic discharge for every application and be aware that static electricity can be hazardous
- NOTE: In those cases where electrostatic discharge can occur, conductive PTFE hose with a conductive tube (Gates C14CT) is recommended
GATES 70810 Specifications
Product Attributes
| Product Type | C14 PTFE Hose - SAE 100R14 Type A - Non-Conductive |
| Industrial Description | 10C14XCTN |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 800 PS |
| Burst Pressure | 3200 PS |
| Temperature Rating | -65 Deg. F to +400 Deg. F (Dynamic); -65 Deg. F to +450 Deg. F (Static) |
| Length | 200 FT |
| Dash Size | 10 |
| Inside Diameter | .5 IN |
| Outside Diameter | .65 IN |
| Working Pressure | 800 PS |
| Bend Radius | 6.5 IN |
| Vacuum Rating | 20 INHG |
| Tube Description | Non-Conductive White, Smooth Bore Polytetrafluoroethylene |
| Hose Material | PTFE - Type A |
| Reinforcement Material | One Braid of 300 Series Stainless Steel Wire - 304 Stainless |
| Cover Color | Silver |
| Cover Material | 300 Series Stainless Steel Wire |
| Cover Type | Braided |
| Coupling Recommendation | C14 Couplings |
| SAE Standard | 100R14 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 3917390010 |
| Country of Origin (Primary) | US |
| Stock Status | N |
| UPC | 00072053204322 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
GATES 70810 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 2807-10 |
| Eaton | EN-10TW |
| Goodyear | GR14A10X100 |
| N/A | 04030526 |
| NAPA | 70810 |
| Parker | 919-10 |
| Weatherhead | H24308100R |
