GATES 70592 Part Description
Manufacturer
Product Description

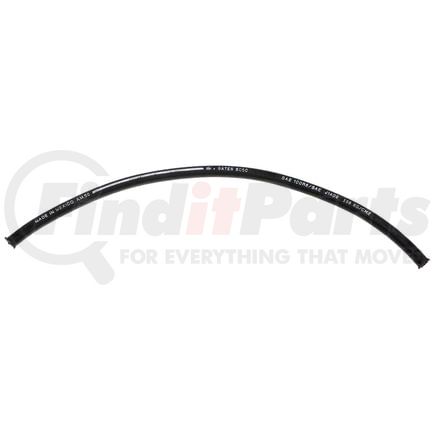

C5C Hydraulic Hose - SAE 100R5
Features & Benefits
- For use with C5 and C5X Field Attachable Couplings [G34 Series]
- Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106-74 TypeAII and SAE J1402 Type AII for air brake applications (-4 to -12)
- Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106–74 TypeAII and SAE J1402 Type AII for air brake applications (-4 to -12)
- Avoid continuous use at maximum temperature concurrent with maximum working pressures
- Temperature Range: Hydraulic Conditions: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); All-purpose Fleet Application (Hot Lube Oil Lines) -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C)
GATES 70592 Specifications
Product Attributes
| Product Type | C5C Hydraulic Hose - SAE 100R5 |
| Industrial Description | 8C5CXREEL |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 2000 PS |
| Burst Pressure | 8000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (Hydraulic); -40 Deg. F to +300 Deg. F (Hot Oil Lines); +160 Deg. F (Air) |
| Length | 330 FT |
| Dash Size | 8 |
| Inside Diameter | .406 IN |
| Outside Diameter | .77 IN |
| Bend Radius | 4.6 IN |
| Tube Description | Black, Oil & Heat Resistant Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Braid of High-Tensile Carbon Steel Wire Over One Braid of Polyester |
| Cover Material | Polyester Braid |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Black |
| Coupling Recommendation | C5 Field Attachable, C5X Field Attachable, MegaCrimp |
| SAE Standard | 100R5 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053227901 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
GATES 70592 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1503-8, 1503-8RL, 2651-8, 2651-8RL |
| Dayco | 010858, 10858 |
| Goodyear | GR5-08X250, GR5-08X250RL, HR5-08X250 |
| N/A | 04030389, 5050-08 |
| NAPA | 70592 |
| Parker | 201-8, 201-8-BX, 201-8-RL, 201-8-RL-250 |
| Weatherhead | H06908250R, H06908-250R, H16908-250R |
