GATES 70545 Part Description
Manufacturer
Product Description

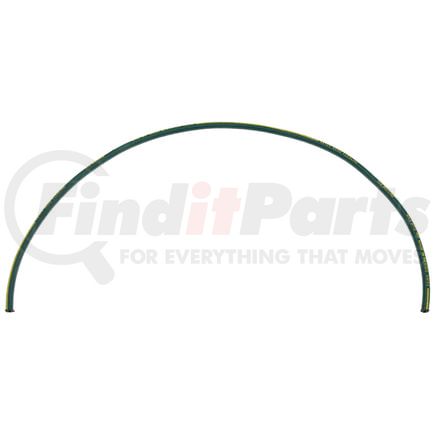

C5D High-Temp Multi-Fluid Hose
Features & Benefits
- For use with C5 and C5X Field Attachable Couplings [G34 Series]
- Black, oil and heat-resistant, synthetic rubber (CPE) tube
- Green cover for easy identification, oil and mildew resistant, polyester braid impregnated with synthetic rubber
- Meets or exceeds DOTFMVSS 106-74 Type All, SAE J1402 Type All and SAE J1405 and fuel resistance of SAE J30R2 (-4 to -12)
- Temperature Range: -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C); Air Only: +250 Deg. F (+121 Deg. C); Phosphate Esters: up to +212 Deg. F (+100 Deg. C)
GATES 70545 Specifications
Product Attributes
| Product Type | C5D High-Temp Multi-Fluid Hose |
| Industrial Description | 12C5DXREEL |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 750 PS |
| Burst Pressure | 3000 PS |
| Temperature Rating | -40 Deg. F to +300 Deg. F. Air to +250 Deg. F. Phosphate Esters to +212 Deg. F |
| Length | 220 FT |
| Dash Size | 12 |
| Inside Diameter | .625 IN |
| Outside Diameter | 1.08 IN |
| Bend Radius | 2.3 IN |
| Tube Description | Black, Oil & Heat Reistant, Synthetic Rubber |
| Hose Material | CPE - Type J |
| Reinforcement Material | One Braid of High-Tensile Steel Wire Over One Braid of Polyester |
| Cover Material | Polyester Braid Impregnated w/ Synthetic Rubber |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Green |
| Coupling Recommendation | C5 Field Attachable, C5X Field Attachable |
| SAE Standard | J1402 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Stock Status | N |
| UPC | 00072053227789 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
GATES 70545 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | FC234-12, FC234-12RL, FC350-12, FC350-12RL, FC355-12 |
| Goodyear | GUT12X250 |
| N/A | 04030419 |
| NAPA | 70545 |
| Parker | 266-12, 266-12-BX, 266-12-RL |
| Weatherhead | H16612250R, H16912250R, H56912250R, H16612-250R |
