(888) 312-8812 Login SignupGATES 70530 HYDR HOSE
$5,71560
Package Price for 440 Units
@ $12.99 per unit
Limited availability at this price!
In Stock
Get it by Tuesday, Jul 21
GATES 70530 Part Description
Manufacturer
Product Description

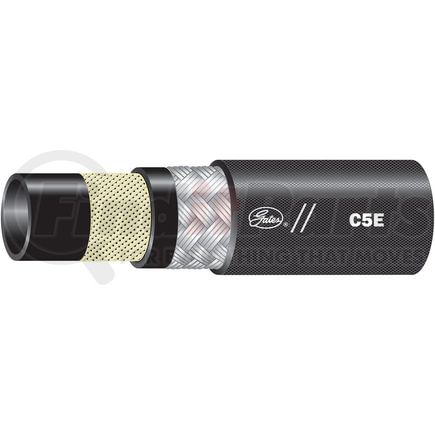

C5E High-Temp Flexline Hose
Features & Benefits
- For use with C5E Field Attachable Couplings [G35 Series]
- DOT FMVSS 106 Type A1, SAE J1405 and SAE J1402 Type A1 (-4 to -12)
- Temperature Range: -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C); Air Maximum Only: +250 Deg. F (+121 Deg. C)
GATES 70530 Specifications
Product Attributes
| Product Type | C5E High-Temp Flexline Hose |
| Industrial Description | 4C5EXREEL |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 1500 PS |
| Burst Pressure | 6000 PS |
| Temperature Rating | -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C). Air +250 Deg. F (+121 Deg. C) Maximum Only |
| Length | 440 FT |
| Dash Size | 4 |
| Inside Diameter | .1875 IN |
| Outside Diameter | .49 IN |
| Bend Radius | .8 IN |
| Tube Description | Black, Oil & Heat Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Braid of High-Tensile Steel Wire Over One Braid of Polyester |
| Cover Material | Textile Braid Impregnated w/ Synthetic Rubber |
| Cover Type | Oil & Heat Resistant |
| Cover Color | Black |
| Coupling Recommendation | C5E Field Attachable, Power Crimp |
| SAE Standard | J1402 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Stock Status | N |
| UPC | 00072053227666 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
GATES 70530 Cross References
| Brand | Part Number |
|---|---|
| Dayco | 30054 |
| N/A | 04030436 |
| NAPA | 70530 |
| Parker | 213-4, 213-4-BX, 213-4-RL, 213-4-RL-250 |
| Weatherhead | H21304250R, H21304-250R |
