GATES 70390 Part Description
Manufacturer
Product Description

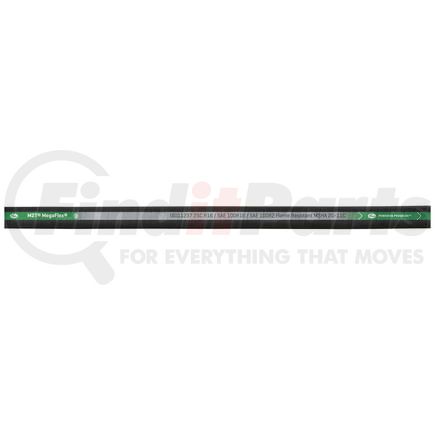

M2T MegaFlex 2-Wire Braid Hose - SAE 100R16
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp Couplings [G25 Series], Stainless Steel Braid Couplings [G17 Series] and Stainless Steel Spiral Couplings [G18 Series]
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Tested to industry-leading 600,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES 70390 Specifications
Product Attributes
| Product Type | M2T MegaFlex 2-Wire Braid Hose - SAE 100R16 |
| Industrial Description | 4M2TXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 6000 PS |
| Burst Pressure | 24000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 550 FT |
| Dash Size | 4 |
| Inside Diameter | .25 IN |
| Outside Diameter | .56 IN |
| Bend Radius | 1.5 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant |
| Cover Color | Black |
| Coupling Recommendation | MegaCrimp, Stainless Steel B |
| SAE Standard | 100R16 |
| EN Standard | 857 2SC, 853 2SN |
| ISO Standard | 11237 2SC R16, 1436 2SN R2 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053318852 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70390 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | FC310-04, FC310-04RL, GH781-4R250, GH781-4R500, GH781-4RC100, FC640-04RL |
| Dayco | 010254A, 011454, 11454 |
| Goodyear | GR16-04X250RL, GR16-04X50, GR16-04X50BX |
| N/A | 04029952, EC215-04 |
| NAPA | 70390 |
| Parker | 431-4, 431-4-BX, 431-4-RL, 431-4-RL-250 |
| Weatherhead | H24504250R, H24504500R, H28004250R, H28004500R, H29004250R, H29004500R, H24504-250R, H29004, H24504-500R, H28004-250R, H28004-500R |
