GATES 70188 Part Description
Manufacturer
Product Description

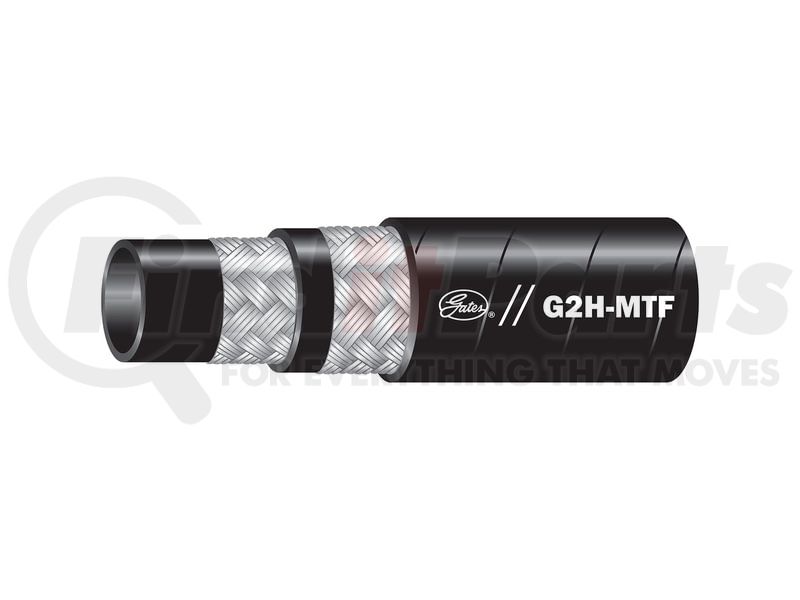

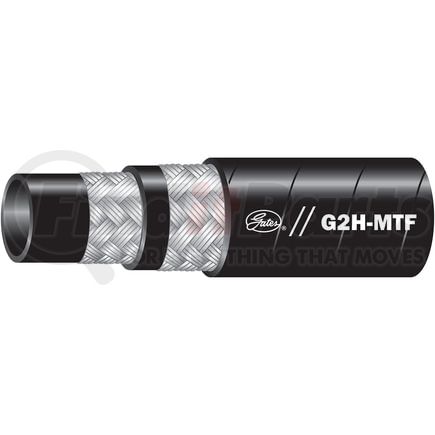

Global G2H High-Temp - MegaTuff Cover Type AT
Features & Benefits
- For use with Field Attachable Type T Couplings [G28 Series], GlobalSpiral Couplings [-20 G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp Couplings [G25 Series] and Stainless Steel Braid Couplings [G17 Series]
- Tested to industry-standard 600,000 impulse cycles
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) constant; +300 Deg. F (+149 Deg. C) intermittent (up to 10 percent of operating time)
GATES 70188 Specifications
Product Attributes
| Product Type | Global G2H High-Temp - MegaTuff Cover Type AT |
| Industrial Description | 24G2H-MTFXCTN |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 1300 PS |
| Burst Pressure | 5200 PS |
| Temperature Rating | -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) |
| Length | 100 FT |
| Dash Size | 24 |
| Inside Diameter | 1.5 IN |
| Outside Diameter | 2.15 IN |
| Bend Radius | 20 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber |
| Cover Type | Flame, Oil & Abrasion Resistant - MegaTuff Cover |
| Cover Color | Black |
| Coupling Recommendation | Field Attachable T, GlobalSpiral Plus, Stainless Steel B |
| SAE Standard | 100R2 |
| EN Standard | 855 2SN |
| ISO Standard | 1438 2SN R2 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| Stock Status | N |
| UPC | 00072053436570 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70188 Cross References
| Brand | Part Number |
|---|---|
| Goodyear | CR2SN-24X100CL, CR2SN24X100 |
| N/A | 04030054 |
| NAPA | 70188 |
