GATES 3480 Part Description
Manufacturer
Product Description

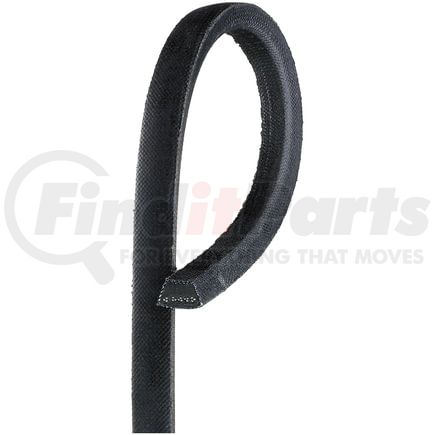

Truflex FHP Low Horse-Power V-Belt
Application Summary
Aldens, 32", , Belt
Features & Benefits
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Runs with smooth, quiet operation
- Meets RMA oil and heat-resistant standards and static conductivity requirements
- Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
- Do not use on applications where FHP medium horsepower V-belts are recommended
GATES 3480 Specifications
Product Attributes
| Type | FHP Low Horse-Power V-Belt |
| Cross Section Designation | 5L |
| Angle | 36 |
| Strand Quantity | 1 |
| Top Width | .66 in |
| Outside Circumference | 48 in |
| Effective Length | 47.96 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 17 mm |
| Outside Circumference | 1219 mm |
| Effective Length | 1218 mm |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| UPC | 00072053007299 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 3480 Part Interchanges
| Brand | Part Number |
|---|---|
| Delco-Remy | 5056182, 5060425 |
| ACDelco | 5L480 |
| Dayco | 2M048, 5L480 |
| BF Goodrich | 2480 |
| Blackstone | V1567TP |
| General Electric | K5705475AE17 |
| Kohler | 285358 |
| CARQUEST | 3480 |
| Silver Streak | DB5L480 |
| American Floor Surface Machine | 2001043 |
| American Lincoln | 15916, 20001051 |
| Auborn Construction | 7472 |
| Browning Manufacturing | 2450 |
| Broyhill | 3279 |
| Clarke Div | 77FF12 |
| Climax Engr | 22CX47 |
| Dexter Co | 9040073002 |
| Frigidaire | 636658, 98475, EA132911 |
| Mercedes-Benz | 800768 |
| John Deere | LG58480, TY4436 |
| Massey Ferguson | 1085689M1 |
| Hudson Mfg | 9561 |
| Iowa Manufacturing | 2296 |
| Jaeger | 30601187 |
| MTD Products | 7540113, 754113, 9540113 |
| Rotary Lifts | 12-5175 |
| Toro | 27122 |
| Goodyear | 5L480, 75480, FB48 |
| NAPA Belts/Hose | 5L480 |
| Grainger | 5L480 |
| Myers | 5070A33 |
| Panzer | 3312 |
| PIX | A-5L480 |
| Power Lawnmower Part | 109-186 |
| Powermatic | 6077043 |
| Reliance Electric | 108104 |
| Sanborn | 0080023 |
| U.S. Government | 3030005284607, MS392435L480 |
| Wagner Electric | T715 |
| <Unknown> | 1013858, 10243, 10556, 15087, 17485, 27233P, 285709, 286157, 286158, 3AP69, 4267, 48834, 5210, 52248, 5824, 5836, 5H57965A480, 617069, 634589, 71270, 720746, 90725, F72GC280B, KR20BC048, R10843, SS37 |
| L Series | 5L480 |
| Metric | 16R1220 |
| X Series | 11X477 |
