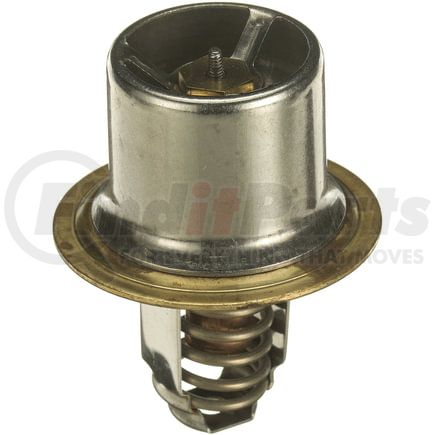

(888) 312-8812 Login SignupGATES 33118 Green Stripe Heavy-Duty Engine Coolant Thermostat
Tap to view 2 more
$9099
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 31
GATES 33118 Part Description
Manufacturer
Product Description
Green Stripe Heavy-Duty Engine Coolant Thermostat
Application Summary
2007-02 International/Navistar, 4300, International/Navistar DT466 Diesel, Thermostat
Features & Benefits
- Heavy-gauge brass and stainless steel construction for corrosion resistance
- Quality-controlled factory calibration assures accuracy of opening and closing, regardless of pressure changes
- Temperature sensitive heat motor provides consistent valve response for smooth performance and precise engine cooling
- Jiggle pins for air venting, seals and gaskets make these thermostats equivalent to the original equipment parts
GATES 33118 Specifications
Product Attributes
| Type | Heavy-Duty Thermostat |
| Start to Open Temperature | 180 FA |
| Design | Top By-Pass |
| Material | Stainless Steel, Copper, Brass |
| Height | 3.16 IN |
| Sealing Flange Outside Diameter | 2.46 IN |
| Flange Thickness | .06 in |
| Flange Height | 1.479 IN |
| Height Between Flanges | 1.669 IN |
| Jiggle Pin Weep Hole | No |
| Jiggle Pin Check Valve Quantity | 0 |
| Gasket Quantity | 0 |
| Installation Tool Included | No |
| Start to Open Temperature | 82 CE |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8481809015 |
| Country of Origin (Primary) | CN |
| UPC | 00072053355567 |
| VMRS Code | 042006000 |
| UNSPSC | 41112209 |
GATES 33118 Part Interchanges
| Brand | Part Number |
|---|---|
| CST | 3398 |
| Stant | 14558, 32938 |
| Motorad | 228-180 |
| Carquest | 32938 |
| International Harvester (IHC) | 1800091C91 |
| NAPA Belts/Hose | 33118 |
| NAPA | 414080 |
| CARQUEST or Stant | 14558 |
GATES 33118 Fits Vehicles
- International 7500 (2002)
- International 8200 (1996-1997)
- International 2375 S (1988)
- International 3000RE (2005)
- International 3000 (1996-2002)
- International Cargostar (1980, 1984-1986)
- International 8500 (2002)
- International 1754 (1979, 1986-1989)
- International F2554 (1979-1989)
- International 2155 (1979-1989)
- International 1854 (1979-1989)
- International F2654 (1980-1989)
- International 1954 (1979-1989)
- International 1955 (1979-1989)
- International F1954 (1979-1989)
- International 5600i (2001-2002)
- International 2674 (2001-2003)
- International 2574 (2001-2003)
- International 5500i (2001-2002)
- International 8100 (1990-2003)
- International S2375 (1988)
- International S2554 (1981-1989)
- International S2155 (1984-1989)
- International S1955 (1981-1989)
- International S1954 (1981-1989)
- International S1854 (1984-1989)
- International S1853 (1984-1989)
- International 7400 (2002-2006)
- International 7100 (1990-1995)
- International S1754 (1986-1989)
- International 7300 (2002-2007)
- International 4900 (1990-2003)
- International 4800 (1990-2003)
- International 4400LP (2002-2007)
- International 4700LP (1990-2002)
- International 4700 (1990-2003)
- International 4400 (2002-2007)
- International 4300LP (2002-2008)
- International 4300 (2002-2008)
- International Genesis RE (1998-2002)
- International 3900FC (1991-1994)
- International 3800 (1990-2004)
- International 3600 (1993-1999)
- International 3000IC (2002)
- International 3200 (2002-2007)
- International 3000FE (1997-1999)
- International 2654 (1989-2002)
- International 2554 (1979-2002)
- International 1652SC (1990-1993)
- International CXT (2005-2008)
- IC Corporation FE Commercial (2003-2004)
- IC Corporation CE School Bus (2003-2004)
- IC Corporation 3000 IC (2002)
- IC Corporation CE Integrated (2005-2007)
- IC Corporation FE Integrated (2005, 2007)
- IC Corporation FE School Bus (2003-2004, 2006-2007)
- IC Corporation RE School Bus (2003-2004, 2006-2007)
- IC Corporation RE Commercial (2003-2007)
- IC Corporation 3800 (2003)
- IC Corporation CE Commercial (2003-2006)
- IC Corporation RE Integrated (2005)
GATES 33118 Cross References
We have 1 alternatives for the 33118 by GATES:
GATES 33118 Customer Reviews
No reviews yet
Be the first to review this product!
