(888) 312-8812 Login SignupGATES 32064 Stainless Steel Hose Clamp
Tap to view 1 more
MSRP: $3.57
$340
Save $0.17
Limited availability at this price!
In Stock
Get it by Friday, Feb 6
GATES 32064 Part Description
Manufacturer
Product Description

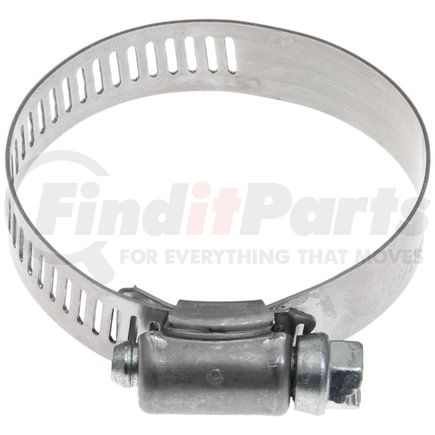

Stainless Steel Hose Clamp
Features & Benefits
- Durable 200 series stainless steel band and screw housing
- One-piece screw housing is interlocked onto band for extra strength
- Cadmium-plated solid head forged from one piece of steel
- Hex-shaped screw has a deep slot that tightens with a screwdriver, nut driver or socket wrench
- NOTE: Tighten Minex clamps to minimum 14-16 in. lb. (maximum of 20 in. lb.)
- NOTE: Super Hex clamps to minimum 25-35 in. lb. (maximum of 50 in. lb.)
GATES 32064 Specifications
Product Attributes
| Adjustment Type | Stainless Steel (Standard) |
| Hose Clamp Size | 64 |
| Hose Minimum Inside Diameter | 2.25 IN |
| Hose Maximum Inside Diameter | 4 IN |
| Minimum Clamping Length | 2.625 IN |
| Maximum Clamping Length | 4.5 IN |
| Band Width | .5 IN |
| Screw Type | Deep Slot Hex-Head |
| Recommended Torque | 25-35 PPI |
| Maximum Torque | 50 IA |
| Material | Stainless Steel |
| Housing Material | Stainless Steel |
| Band Width | 13 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053021752 |
| VMRS Code | 053008020 |
| UNSPSC | 31162900 |
GATES 32064 Cross References
| Brand | Part Number |
|---|---|
| 74000064 | |
| ACDelco | 32064C |
| Aero-Seal | M64S |
| CONTINENTAL AG | 51064 |
| Dayco | 91064, KH64 |
| Goodyear | 51064, 51344 |
| Ideal Hy-Gear | 5064, 5264, 5464, 6464 |
| Ideal Tridon | 5764190, 670040064, 670040064051 |
| Interstate | 2064 |
| Murray Gold Seal | GS 60 |
| NAPA | 705-1027, 705-1086 |
| New Holland | 246047 |
| Norton | 013-64 |
| Robertshaw | 2064 |
| Sure-Tite | C64P |
| Velvac | 022364 |
