GATES 24430 Part Description
Manufacturer
Product Description

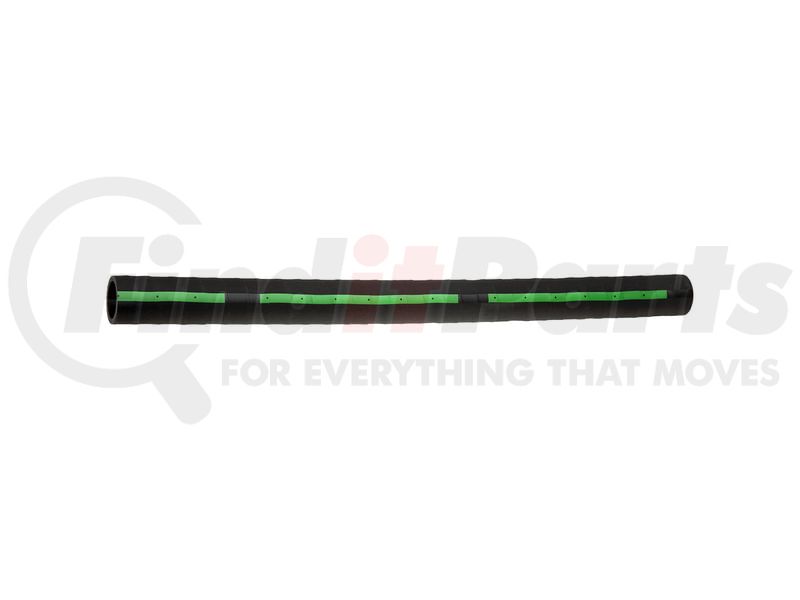

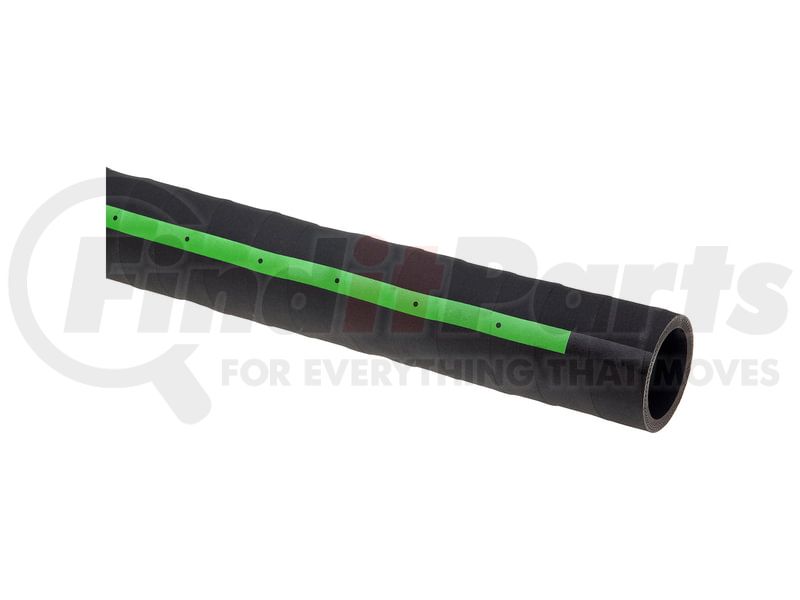

Green Stripe 4-Ply Straight Coolant Hose
Application Summary
Fiat-Allis, 100C, Allis-Chalmers 11000 Diesel, By Pass
Features & Benefits
- Engineered with compounds to resist electrochemical degradation - the leading cause of hose failure
- Engineered with compounds to resist electrochemical degradation – the leading cause of hose failure
- Nitrile tube specially compounded to handle common coolants and additives
- Four-ply woven, heavy-duty fabric reinforcement
- Neoprene cover resists heat, abrasion and oil
- Exceeds SAE 20R1 (Class B Tube, Class C Cover, Heavy Wall)
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) continuous; up to +257 Deg. F (+125 Deg. C) intermittent
- Temperature Range: –40 Deg. F to +212 Deg. F (–40 Deg. C to +100 Deg. C) continuous; up to +257 Deg. F (+125 Deg. C) intermittent
- Caution: Do not use for gasoline or diesel transfer applications
GATES 24430 Specifications
Product Attributes
| Centerline Length | 3 FT |
| End 1 Inside Diameter | 1.875 in |
| End 2 Inside Diameter | 1.875 in |
| Working Pressure | 100 PS |
| Construction | 4-Ply |
| Material | EPDM |
| Molded | No |
| Centerline Length | .91 LM |
| Centerline Length | 36 IN |
| Centerline Length | 914 MM |
| End 1 Inside Diameter | 48 MM |
| End 2 Inside Diameter | 48 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Stock Status | N |
| UPC | 00072053298062 |
| VMRS Code | 042004050 |
| UNSPSC | 40142000 |
