Name: Gates 22839 Premium Modular Coolant Hose
SKU: 22839
Price: 97.99 USD
Availability: InStock

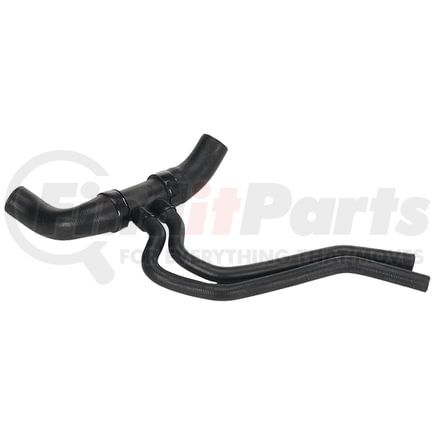

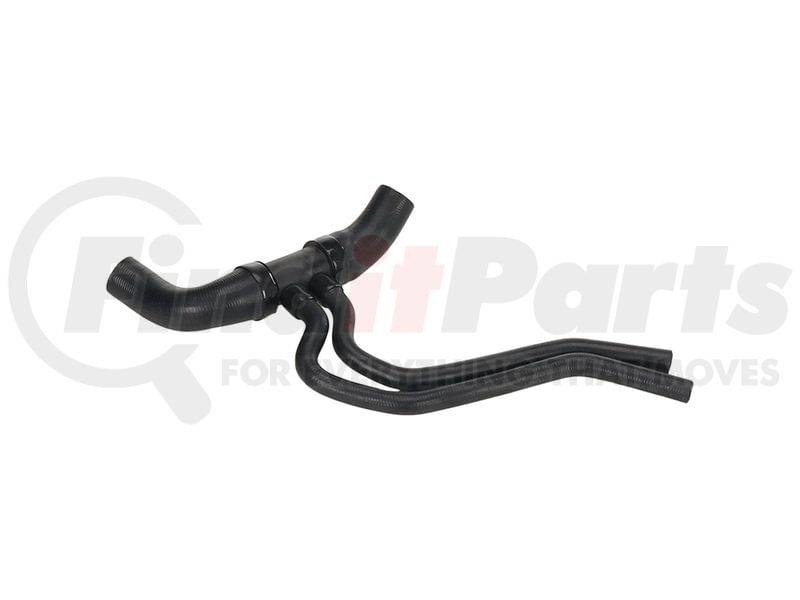

Premium Modular Coolant Hose

2005-00 Lincoln, LS, V-6 3.0 L, Lower

Specifically-engineered materials resist collapse under vacuum
Specifically-engineered materials resist collapse under vacuum
Engineered to resist electrochemical degradation - the leading cause of hose failure
Engineered to resist electrochemical degradation – the leading cause of hose failure
EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
Note: Gates recommends replacing clamps each time a new coolant hose is installed
Caution: Do not use for fuel or oil transfer applications

Centerline Length	12.4 IN
Modular	Yes
Modular Components Included	2 Branches
Branch Quantity	2
Quick Connect Fitting Quantity	0
End 1 Inside Diameter	1.45 in
End 2 Inside Diameter	1.45 in
End 3 Inside Diameter	.62 in
End 4 Inside Diameter	.62 in
Contains Spring	No
Material	EPDM, Plastic
Molded	Yes
Centerline Length	16 MM
End 1 Inside Diameter	37 MM
End 2 Inside Diameter	37 MM
End 4 Inside Diameter	16 MM
